5CEFA5M13C6N Overview

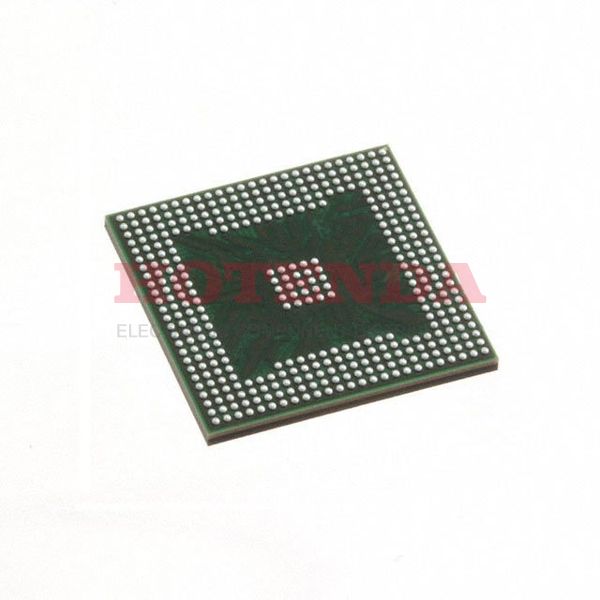

Fpga chips is supplied in the 383-TFBGA package. This kind of FPGA is composed of FIELD PROGRAMMABLE GATE ARRAY. Its 175 I/Os help it transfer data more efficiently. A fundamental building block consists of 77000 logic elements/cells. It is powered from a supply voltage of 1.1V. An FPGA part from the Field Programmable Gate Arrays family. The Surface Mount-slot on the development board allows you to attach the FPGA module. With a supply voltage of 1.07V~1.13V, this device operates with ease. It is a type of FPGA belonging to the Cyclone? V E seies. The operating temperature should be kept at 0°C~85°C TJ when operating. With this device, you will be able to make use of 175 outputs. There is an FPGA model contained in Tray in order to conserve space. In total, there are a total of 383 terminations on fpga chips. Having a RAM bit size of 5001216 means that this device will offer you a lot of memory. If you are looking for related parts, you can use the base part number 5CEFA5 as a starting point. 29080 LABs/CLBs are integrated into this FPGA. Powered by a 1.11.2/3.32.5V power supply, it can be operated by almost anyone.
5CEFA5M13C6N Features
175 I/Os
Up to 5001216 RAM bits
5CEFA5M13C6N Applications
There are a lot of Intel 5CEFA5M13C6N FPGAs applications.
- Development Boards and Shields for Microcontrollers
- ADAS
- Industrial Ethernet
- High Performance Computing
- Industrial IoT
- Military Temperature
- Bioinformatics
- Automotive Applications
- Automation
- Scientific Instruments
