5CEFA2M13C7N Overview

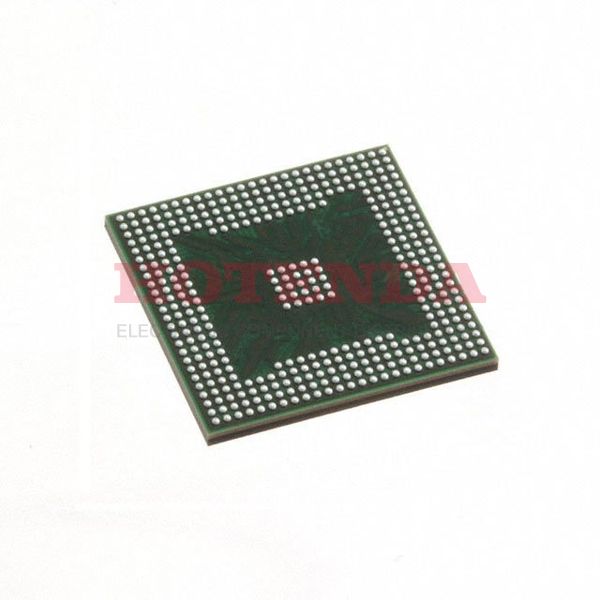

A 383-TFBGA package is provided with this component. Fpga chips consists of FIELD PROGRAMMABLE GATE ARRAY elements. There are 223 I/Os for better data transfer. Logic blocks consist of 25000 logic elements/cells. In order for the device to operate, a supply voltage of 1.1V volts needs to be provided. The Field Programmable Gate Arrays family of FPGAs includes this part. The Surface Mount-slot on the development board allows you to attach the FPGA module. This device is powered by a 1.07V~1.13V battery. An FPGA belonging to the Cyclone? V E series is referred to as an FPGA. Fpga chips is necessary to keep the operating temperature wFpga chipshin 0°C~85°C TJ when the device is operating. In this device, 223 outputs are incorporated in order to provide you with maximum flexibility. Using the Tray layout, this FPGA model can be contained in a very small amount of space. In total, the terminations of this piece are 383. Fpga chips is important to note that this device has a RAM capacFpga chipsy of 2002944 bFpga chipss. If you are looking for related parts, you can use the base part number 5CEFA2 as a starting point. The FPGA is built as an array of 9434 latches or CLBs. It is powered by a 1.11.2/3.32.5V battery, which can be purchased separately.
5CEFA2M13C7N Features
223 I/Os
Up to 2002944 RAM bits
5CEFA2M13C7N Applications
There are a lot of Intel 5CEFA2M13C7N FPGAs applications.
- Video & Image Processing
- Telecommunication
- Artificial intelligence (AI)
- Software-defined radio
- Medical imaging
- Industrial,Medical and Scientific Instruments
- Consumer Electronics
- Automotive driver's assistance
- Data Center
- High Performance Computing
