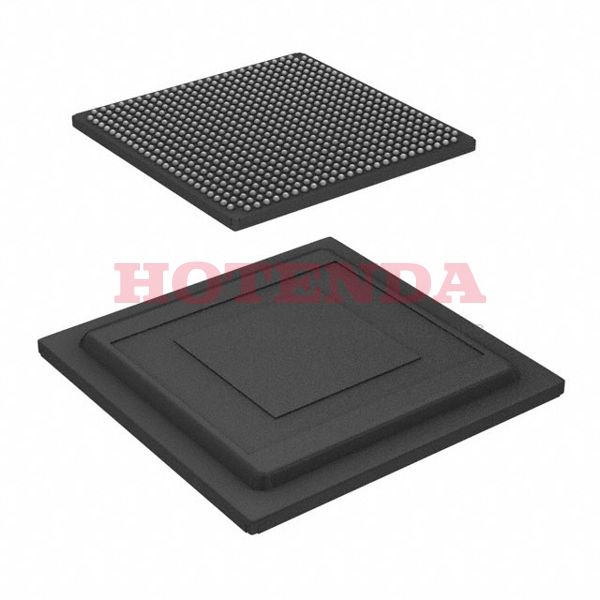

5AGXMA7D4F27I3N Overview
There is a 672-BBGA, FCBGA package that includes this component. An FPGA of this type is made up of FIELD PROGRAMMABLE GATE ARRAY gates. This device features 336 I/Os in order to transfer data in a more efficient manner. The basic building blocks of logic contain 242000 logic elements/cells. In order for the device to operate, a supply voltage of 1.15V volts needs to be provided. An FPGA module can be attached to a development board with a Surface Mount-pin. A supply voltage of 1.12V~1.18V is needed in order for fpga chips to operate. It is a type of FPGA belonging to the Arria V GX seies. While operating, the operating temperature should be kept within a range of -40°C~100°C TJ. This FPGA model is contained in Tray for space saving. In total, it has 672 terminations on each end. This device has 15470592 RAM bits, which is the number of RAM bits that this device offers. Related parts can be found by using its base part number 5AGXMA7. An array of 11460 LABs/CLBs is built into the FPGA. It usually uses a crystal oscillating at a frequency of 670MHz in order to do its work.
5AGXMA7D4F27I3N Features
336 I/Os
Up to 15470592 RAM bits
5AGXMA7D4F27I3N Applications
There are a lot of Intel 5AGXMA7D4F27I3N FPGAs applications.
- Automotive Applications
- Scientific Instruments
- Random logic
- Embedded Vision
- Automotive advanced driver assistance systems (ADAS)
- Audio
- Automotive
- Medical ultrasounds
- Electronic Warfare
- DO-254
