5AGXMA5D4F27C4N Overview

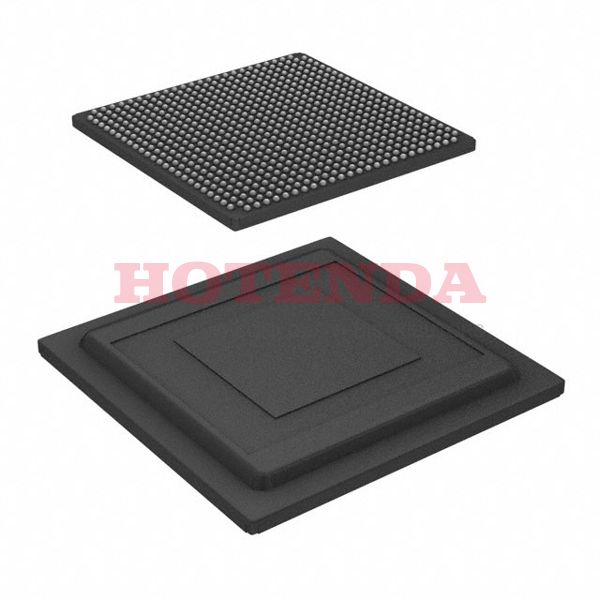

In the package 672-BBGA, FCBGA, this product is provided. In this kind of FPGA, FIELD PROGRAMMABLE GATE ARRAY is used. Having 336 I/Os makes data transfers more coherent. In order to construct a fundamental building block, 190000 logic elements/cells are required. Supply voltage is 1.1V volts. This FPGA part belongs to the family of Field Programmable Gate Arrays. The Surface Mount-slot on the development board allows you to attach the FPGA module. In order to operate it, it requires a voltage supply of 1.07V~1.13V . This is a type of FPGA that is part of the Arria V GX series of FPGAs. Fpga chips is necessary to keep the operating temperature wFpga chipshin 0°C~85°C TJ when the device is operating. In this device, there are 336 outputs that can be used. This FPGA model is contained in Tray for space saving. In total, the terminations of this piece are 672. Having a RAM bit size of 13284352 means that this device will offer you a lot of memory. In order to find related parts, use the part number 5AGXMA5 as a base. This FPGA is built as an array of 8962 LABs/CLBs. Power is supplied to the device by a 1.11.2/3.32.5V battery. Typically, fpga semiconductor uses a crystal oscillating at 670MHz .
5AGXMA5D4F27C4N Features
336 I/Os
Up to 13284352 RAM bits
5AGXMA5D4F27C4N Applications
There are a lot of Intel 5AGXMA5D4F27C4N FPGAs applications.
- Secure Communication
- Ecosystem
- Broadcast
- Camera time adjustments
- Enterprise networking
- Computer hardware emulation
- Audio
- Integrating multiple SPLDs
- Image processing
- Bioinformatics
