5AGXMA3D4F27I3 Overview

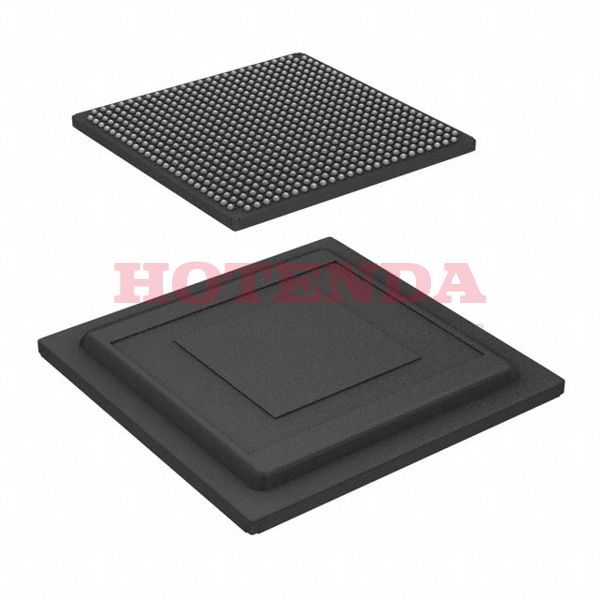

A 672-BBGA, FCBGA package is provided with this component. FIELD PROGRAMMABLE GATE ARRAY is the component of this type of FPGA. A total of 336 I/Os allow data to be transferred in a more coherent manner. The basic building blocks of logic contain 156000 logic elements/cells. An electrical supply voltage of 1.15V powers it. The Surface Mount-slot on the development board allows you to attach the FPGA module. There is a 1.12V~1.18V-volt supply voltage required for the device to operate. As part of the Arria V GX series of FPGAs, it is a type of FPGA. Fpga chips is recommended that the operating temperature be kept wFpga chipshin the range -40°C~100°C TJ while the machine is operating. There is an FPGA model contained in Tray in order to conserve space. In total, the terminations of this piece are 672. A device like this one offers 11746304 RAM bits, which is a considerable amount of memory. Its base part number 5AGXMA3 can be used to find parts that are related to it. 7362 LABs/CLBs are configured on this FPGA. Typically, it uses a crystal oscillating at 670MHz in order to operate.
5AGXMA3D4F27I3 Features
336 I/Os
Up to 11746304 RAM bits
5AGXMA3D4F27I3 Applications
There are a lot of Intel 5AGXMA3D4F27I3 FPGAs applications.
- Artificial intelligence (AI)
- Military DSP
- Scientific Instruments
- Wireless Communications
- Distributed Monetary Systems
- Broadcast
- Computer hardware emulation
- Software-defined radios
- Development Boards and Shields for Microcontrollers
- Security systems
