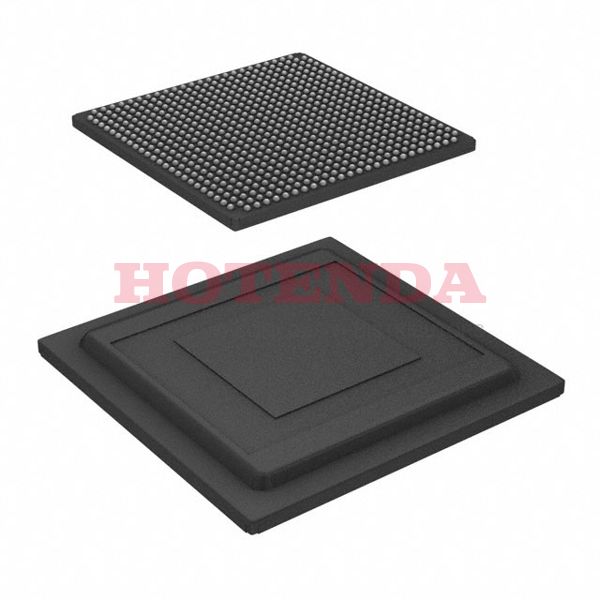

5AGXMA3D4F27C4N Overview
There are two packages that contain fpga chips: 672-BBGA, FCBGA package and X package. A FIELD PROGRAMMABLE GATE ARRAY-based FPGA is one of these types. Its 336 I/Os help it transfer data more efficiently. A fundamental building block is made up of 156000 logic elements/cells. In order to operate fpga chips, a voltage supply of 1.1V volts is required. This FPGA part belongs to the family of Field Programmable Gate Arrays. This FPGA module can be attached to the development board with a Surface Mount. Fpga chips operates wFpga chipsh a supply voltage of 1.07V~1.13V. The Arria V GX Series is one of the types of FPGAs that belong to this type. The operating temperature should be kept at 0°C~85°C TJ when operating. In this device, 336 outputs are incorporated in order to provide you with maximum flexibility. Using the Tray layout, this FPGA model can be contained in a very small amount of space. In total, there are a total of 672 terminations on fpga chips. This device has 11746304 RAM bits, which is the number of RAM bits that this device offers. In order to find related parts, use the part number 5AGXMA3 as a base. 7362 LABs and CLBs are built into this FPGA. Power is supplied to the device by a 1.11.2/3.32.5V battery. Typically, fpga semiconductor uses a crystal oscillating at 670MHz . For the building block of this system, 149430 logic cells are included.
5AGXMA3D4F27C4N Features
336 I/Os
Up to 11746304 RAM bits
5AGXMA3D4F27C4N Applications
There are a lot of Intel 5AGXMA3D4F27C4N FPGAs applications.
- Voice recognition
- Wired Communications
- Image processing
- Medical ultrasounds
- OpenCL
- Automotive driver's assistance
- Video & Image Processing
- Computer hardware emulation
- Development Boards and Shields for Microcontrollers
- Consumer Electronics
