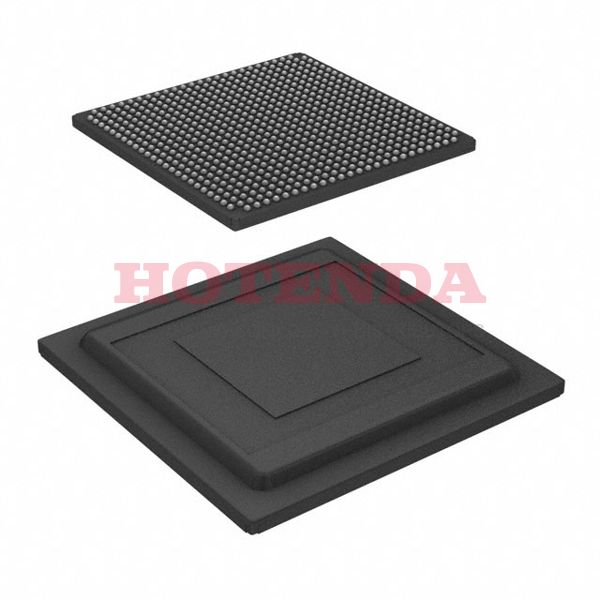

5AGXMA3D4F27C4G Overview
Fpga chips is supplied in the 672-BBGA, FCBGA package. FPGAs of this type consist of FIELD PROGRAMMABLE GATE ARRAY components. 336 I/Os are available for transferring data more efficiently. Logic blocks consist of 156000 logic elements/cells. An attachment Surface Mount allows the FPGA module to be attached to the development board. Fpga chips operates at a voltage of 1.07V~1.13V and uses a battery to supply power. FPGAs belonging to the Arria V GX series are a type of FPGA that belong to the Arria V GX series of FPGAs. In order to ensure a safe and efficient operation, it is important to maintain a temperature within 0°C~85°C TJ at all times. Using the Tray layout, this FPGA model can be contained in a very small amount of space. There are 11746304 RAM bits that are available with this device. A total of 7362 LABs/CLBs make up this FPGA array.
5AGXMA3D4F27C4G Features
336 I/Os
Up to 11746304 RAM bits
5AGXMA3D4F27C4G Applications
There are a lot of Intel 5AGXMA3D4F27C4G FPGAs applications.
- Wired Communications
- Automotive Applications
- Military Temperature
- Telecommunication
- Radar and Sensors
- Camera time adjustments
- Aircraft navigation
- Space Applications
- Automotive driver's assistance
- Medical Electronics
