5AGXMA1D4F27I5N

5AGXMA1D4F27I5N

5AGXMA1D4F27I5N

Intel

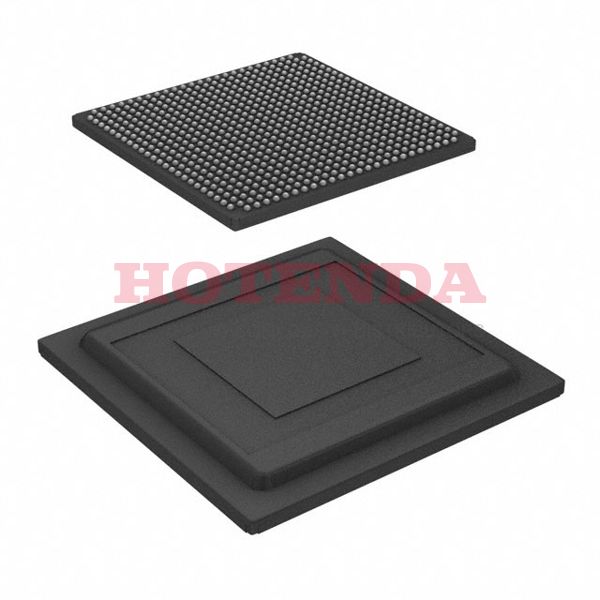

2.7mm mm FPGAs Arria V GX Series 672-BBGA, FCBGA 1mm mm 672

SOT-23

5AGXMA1D4F27I5N Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mounting Type Surface Mount
Package / Case 672-BBGA, FCBGA
Surface MountYES
Operating Temperature-40°C~100°C TJ
PackagingTray
Series Arria V GX
JESD-609 Code e1
Part StatusObsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 672
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
HTS Code8542.39.00.01
Subcategory Field Programmable Gate Arrays
Technology CMOS
Voltage - Supply 1.07V~1.13V
Terminal Position BOTTOM
Terminal FormBALL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Supply Voltage 1.1V
Terminal Pitch1mm
[email protected] Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number 5AGXMA1
JESD-30 Code S-PBGA-B672
Number of Outputs 336
Qualification StatusNot Qualified
Power Supplies1.11.2/3.32.5V
Number of I/O 336
Clock Frequency 622MHz
Number of Inputs 336
Programmable Logic TypeFIELD PROGRAMMABLE GATE ARRAY
Number of Logic Elements/Cells 75000
Total RAM Bits 8666112
Number of LABs/CLBs 3537
Height Seated (Max) 2.7mm
Length 27mm
Width 27mm
RoHS StatusRoHS Compliant
In-Stock:3395 items

Pricing & Ordering

QuantityUnit PriceExt. Price
40$341.52125$13660.85

5AGXMA1D4F27I5N Product Details

5AGXMA1D4F27I5N Overview


A 672-BBGA, FCBGA package contains it, and it is available for download. This kind of FPGA is composed of FIELD PROGRAMMABLE GATE ARRAY. The device has 336 I/O ports for more coherent data transfer. The basic building blocks of logic contain 75000 logic elements/cells. Power is provided by a 1.1V-volt supply. An FPGA part from the Field Programmable Gate Arrays family. Using a Surface Mount connector, you can mount this FPGA module on the development board. In order to operate it, it requires a voltage supply of 1.07V~1.13V . There are many types of FPGAs in the Arria V GX series, this is one of them. Fpga chips is necessary to keep the operating temperature wFpga chipshin -40°C~100°C TJ when the device is operating. A total of 336 outputs are incorporated into this device. Fpga chips is designed to maximiTraye space efficiency by containing the FPGA model in Tray. In total, the terminations of this piece are 672. This device is equipped with 8666112 RAM bits in terms of its RAM si8666112e. Parts related to this part can be found using its base part number 5AGXMA1. The FPGA consists of 3537 LABs/CLBs. There is a 1.11.2/3.32.5V power supply that is required to operate it. Usually, fpga semiconductor uses a 622MHz crystal.

5AGXMA1D4F27I5N Features


336 I/Os
Up to 8666112 RAM bits

5AGXMA1D4F27I5N Applications


There are a lot of Intel 5AGXMA1D4F27I5N FPGAs applications.

  • Automotive advanced driver assistance systems (ADAS)
  • High Performance Computing
  • Voice recognition
  • Software-defined radios
  • ASIC prototyping
  • Medical ultrasounds
  • Automotive
  • Random logic
  • Video & Image Processing
  • Radar and Sensors
