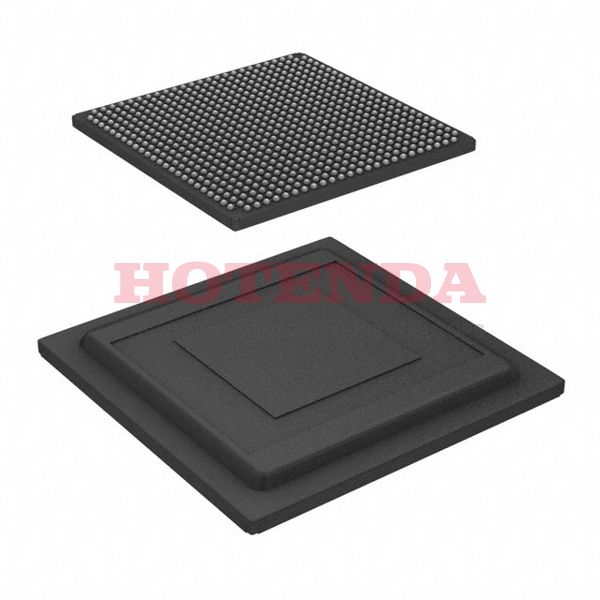

5AGXBA3D6F27C6N Overview
There are two packages that contain fpga chips: 672-BBGA, FCBGA package and X package. FIELD PROGRAMMABLE GATE ARRAY is the component of this type of FPGA. Having 336 I/Os makes data transfers more coherent. Logic blocks consist of 156000 logic elements/cells. Fpga chips is powered from a supply voltage of 1.1V. Part of the Field Programmable Gate Arrays family, this FPGA part is a programmable gate array. FPGA modules can be attached to development boards using a Surface Mount-connector. In order for it to operate, the supply voltage must be 1.07V~1.13V . An FPGA belonging to the Arria V GX series is referred to as an FPGA. During the operation of the system, the operating temperature should remain within the range of 0°C~85°C TJ. There are 336 outputs incorporated in this device. This FPGA model is contained in Tray for space saving. The total number of terminations is 672. The RAM bits that are offered by this fpga chips are 11746304. In order to find related parts, you can use its base part number 5AGXBA3. 7362 LABs/CLBs are integrated into this FPGA. Fpga electronics operates from a 1.11.2/3.32.5V power supply. Typically, it uses a crystal oscillating at 500MHz in order to operate.
5AGXBA3D6F27C6N Features
336 I/Os
Up to 11746304 RAM bits
5AGXBA3D6F27C6N Applications
There are a lot of Intel 5AGXBA3D6F27C6N FPGAs applications.
- Image processing
- Telecommunication
- Medical ultrasounds
- Development Boards and Shields for Microcontrollers
- ADAS
- Radar and Sensors
- Software-defined radio
- Data center hardware accelerators
- Integrating multiple SPLDs
- Secure Communication
