59S225-400L5

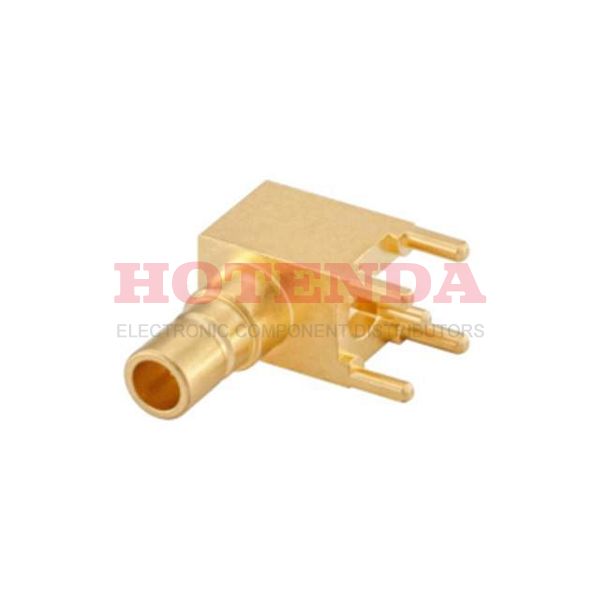

  • 59S225-400L5 - Plug, Male Pin Snap-On 50Ohm Bulk SMB Solder 1 Port Polyamide (PA), Nylon 6T -55°C~155°C
  • 59S225-400L5 - Plug, Male Pin Snap-On 50Ohm Bulk SMB Solder 1 Port Polyamide (PA), Nylon 6T -55°C~155°C

59S225-400L5

59S225-400L5

Rosenberger

Plug, Male Pin Snap-On 50Ohm Bulk SMB Solder 1 Port Polyamide (PA), Nylon 6T -55°C~155°C

SOT-23

59S225-400L5 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 13 Weeks
Mounting Type Through Hole, Right Angle
Insulation Material PA6.6T
Dielectric MaterialPolyamide (PA), Nylon 6T
Body Material Brass
Center Contact Plating Gold
Panel Mount NO
Operating Temperature-55°C~155°C
PackagingBulk
Published 2014
JESD-609 Code e4
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug, Male Pin
Gender Male
Voltage - Rated 250V
Fastening TypeSnap-On
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Option GENERAL PURPOSE
Impedance50Ohm
Connector Style SMB
Number of Ports1
Frequency (Max) 4GHz
Mating Cycles500
Contact Termination Solder
Operating Frequency-Max 4GHz
Insertion Loss0.2 dB
RoHS StatusRoHS Compliant
In-Stock:1241 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$4.33000$4.33
10$4.15200$41.52
25$3.80600$95.15
50$3.63300$181.65
100$3.46000$346
250$3.02752$756.88
500$2.94100$1470.5

59S225-400L5 Product Details

59S225-400L5 Overview


Plug, Male Pin packaging is included.A Through Hole, Right Angle mounting type is specified for the device.A Bulk case is used for packaging.With 1 ports, you can do everything you need.In this case, the device runs at -55°C~155°C Operating Temperature.

59S225-400L5 Features




59S225-400L5 Applications


There are a lot of Rosenberger
59S225-400L5 Coaxial Connectors applications.


  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
  • LED municipal outdoor and street lighting
  • All Electrical Machinery
