Name: 5977721107
Brand: Dialight
SKU: 5977721107
Availability: InStock

new-10%

5977721107

Manufacturer part number:5977721107

Manufacturer:Dialight

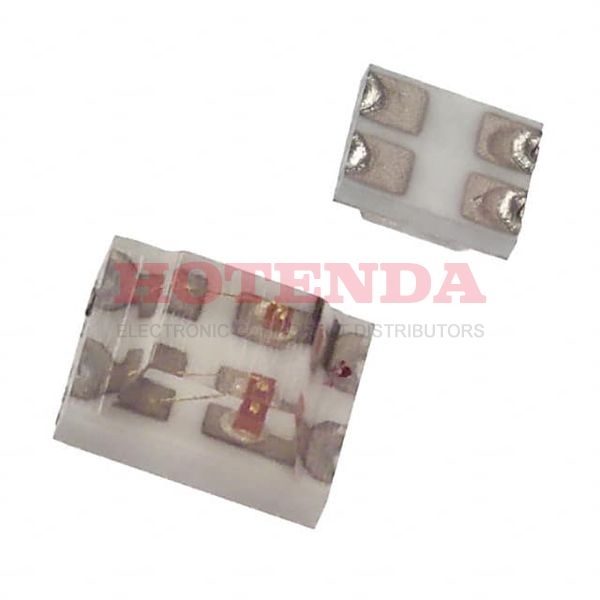

Description:LED GREEN/YELLOW CLEAR 4SMD

Case Package:SOT-23

Datasheet:5977721107 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	4-SMD, No Lead
Surface Mount	YES
Shape	RECTANGULAR
Packaging	Tape & Reel (TR)
Published	2002
Series	microLED®
Size / Dimension	3.00mm Lx2.54mm W
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	4
Terminal Finish	Silver/Platinum (Ag/Pt)
Color	Green, Yellow
HTS Code	8541.40.20.00
Subcategory	Visible LEDs
Packing Method	TAPE AND REEL
Number of Functions	1
Terminal Pitch	2.99mm
Reach Compliance Code	compliant
Operating Temperature (Max)	75°C
Operating Temperature (Min)	-30°C
Configuration	Independent
Voltage - Forward (Vf) (Typ)	2V Green 2.1V Yellow
Viewing Angle	170°
Optoelectronic Device Type	DUAL COLOR LED
Current - Test	20mA Green 20mA Yellow
Lens Style	Rectangle with Flat Top
Lens Size	1.65mmx1.27mm
Luminous Intensity	6.0/12.0 mcd
Millicandela Rating	12mcd Green, 8mcd Yellow
Lens Transparency	Clear
Wavelength - Peak	565nm Green 585nm Yellow
Lens Color	Colorless
Forward Current-Max	0.025A
Forward Voltage-Max	2.6V
Overall Height	1.016mm
Wavelength - Dominant	565nm Green 585nm Yellow
Height (Max)	1.47mm
RoHS Status	RoHS Compliant

About 5977721107

The 5977721107 from Dialight is a high-performance microcontroller designed for a wide range of embedded applications. This component features LED GREEN/YELLOW CLEAR 4SMD.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the 5977721107, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
