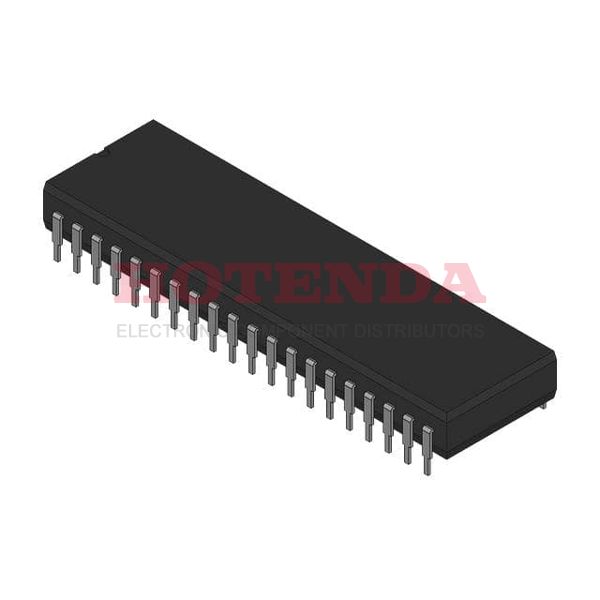

Name: 5962-9097601MXA
Brand: Intel
SKU: 5962-9097601MXA
Availability: InStock

new-10%

5962-9097601MXA

Manufacturer part number:5962-9097601MXA

Manufacturer:Intel

Description:Microcontroller 5V

Case Package:SOT-23

Datasheet:5962-9097601MXA Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Surface Mount	NO
Published	1997
JESD-609 Code	e0
Number of Terminations	40
ECCN Code	3A001.A.2.C
Terminal Finish	TIN LEAD
HTS Code	8542.31.00.01
Terminal Position	DUAL
Terminal Form	THROUGH-HOLE
Supply Voltage	5V
JESD-30 Code	R-GDIP-T40
Qualification Status	Not Qualified
Operating Temperature (Max)	125°C
Operating Temperature (Min)	-55°C
Supply Voltage-Max (Vsup)	6V
Temperature Grade	MILITARY
Supply Voltage-Min (Vsup)	4V
Number of I/O	32
Speed	12 MHz
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Clock Frequency	12MHz
Bit Size	8
Has ADC	NO
DMA Channels	NO
PWM Channels	YES
DAC Channels	NO
Address Bus Width	16
External Data Bus Width	8
RoHS Status	Non-RoHS Compliant

5962-9097601MXA Product Details

5962-9097601MXA Overview

32 I/Os are available. This device falls under the MICROCONTROLLER uPs/uCs/Peripheral ICs category. 40 is the number of terminations on the IC chip that are present. This part works in a 8-bit manner. There is a 5V volt supply output on the chip. DMA channels number NO. The device works in YES PWM channels. A 12MHz-clock frequency is used to operate it.
