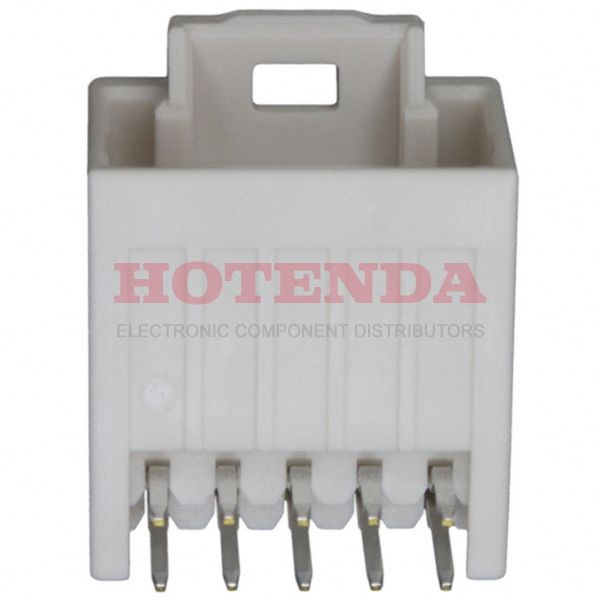

Name: 5018761040
Brand: Molex
SKU: 5018761040
Price: 1.27000 USD
Availability: InStock

new-10%

5018761040

Manufacturer part number:5018761040

Manufacturer:Molex

Description:5018761040 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:5018761040 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	21 Weeks
Contact Material	Brass
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Option 1	LOCKING
Packaging	Tray
Published	2005
Series	iGrid 501876
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	10
Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
Number of Rows	2
Additional Feature	IGRID, POLARIZED
Fastening Type	Latch Holder
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Insulation Height	0.327 8.30mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Pitch - Mating	0.079 2.00mm
Insulation Color	Natural
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Row Spacing - Mating	0.079 (2.00mm)
Contact Length - Post	0.126 3.20mm
Shrouding	Shrouded - 4 Wall
Number Of PCB Rows	2
PCB Contact Pattern	RECTANGULAR
Operating Temperature (Max)	85°C
Body Depth	0.57 inch
Rated Current (Signal)	1A
Mating Contact Pitch	0.079 inch
Polarization Key	POLARIZED HOUSING
Durability	30 Cycles
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

5018761040 Product Details

5018761040 Overview

Packaging is in the form of Header.This device is mounted in the Through Hole, Right Angle position.A Tray case is used to package the product.The product is part of the iGrid 501876 Series.Further, there are features such as IGRID, POLARIZED, to name only a few.The device could be used for Automotive, General Purpose, Industrial, Medical, Telecommunications.
