1SG280HH2F55E2VG Overview

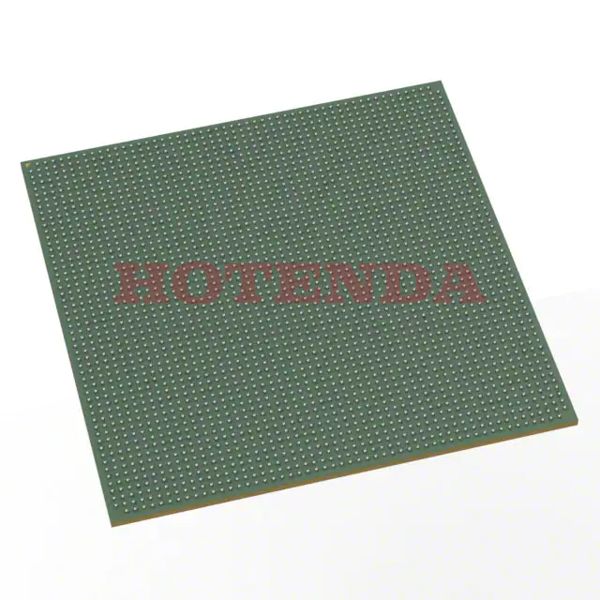

Fpga chips is supplied in the 2912-BBGA, FCBGA package. FIELD PROGRAMMABLE GATE ARRAY is the component of this type of FPGA. The I/Os are designed to facilitate a more coherent transfer of data. The basic building blocks of logic contain 2800000 logic elements/cells. The Surface Mount-slot connector on the FPGA module can be connected to the development board. This device is powered by a 0.77V~0.97V battery. An FPGA belonging to the Stratix? 10 GX series is referred to as an FPGA. Operating temperatures should be maintained within the 0°C~100°C TJ range at all times when the unit is in use. This FPGA is built as an array of 350000 LABs/CLBs.
1SG280HH2F55E2VG Features
1160 I/Os
1SG280HH2F55E2VG Applications
There are a lot of Intel 1SG280HH2F55E2VG FPGAs applications.
- Wireless Communications
- Data Mining
- Random logic
- Server Applications
- Integrating multiple SPLDs
- Image processing
- Electronic Warfare
- Digital signal processing
- Automotive Applications
- Enterprise networking
