Name: 1722981304
Brand: Molex
SKU: 1722981304
Price: 2.13000 USD
Availability: InStock

new-10%

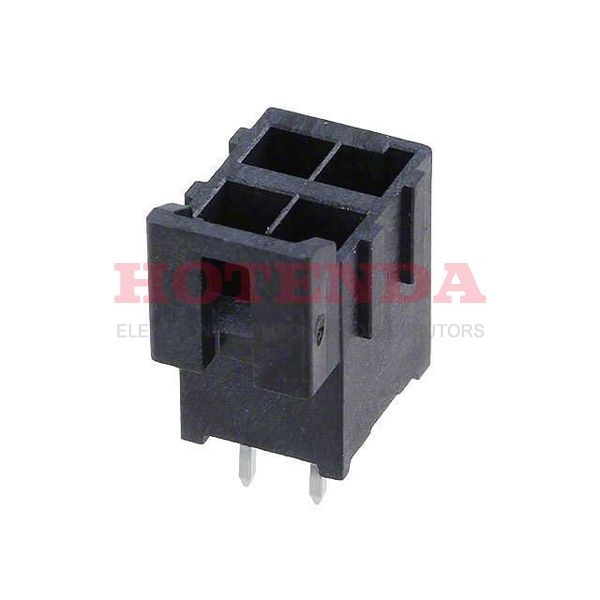

1722981304

Manufacturer part number:1722981304

Manufacturer:Molex

Description:1722981304 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:1722981304 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	13 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-40°C~120°C
Packaging	Bulk
Published	2015
Series	Ultra-Fit 172298
Feature	Board Guide
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Kinked Pin, Solder
ECCN Code	EAR99
Connector Type	Header
Number of Positions	4
Applications	Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
Number of Rows	2
Voltage - Rated	400V
Additional Feature	POLARIZED
Fastening Type	Latch Holder
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Insulation Height	0.465 11.80mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Pitch - Mating	0.138 3.50mm
Insulation Color	Black
Row Spacing - Mating	0.181 (4.60mm)
Contact Length - Post	0.126 3.20mm
Shrouding	Shrouded - 4 Wall
Contact Finish - Post	Tin
Empty Shell	NO
Contact Finish Thickness - Mating	30.0μin 0.76μm
Contact Finish Thickness - Post	60.0μin 1.52μm
Stack Height (Mating)	26.99mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

1722981304 Product Details

1722981304 Overview

Header packaging is included.Through Hole indicates that the device is mounted.To package the product, we use a Bulk case.Among the products in the Ultra-Fit 172298 Series, it is one of the most popular.There are also other features like POLARIZED, to name a few.There is the possibility of using the device for Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications.A number of advantages are provided by its Board Guide feature.The part is mounted by Through Hole.-40°C~120°C Operating Temperature is used by the device.
