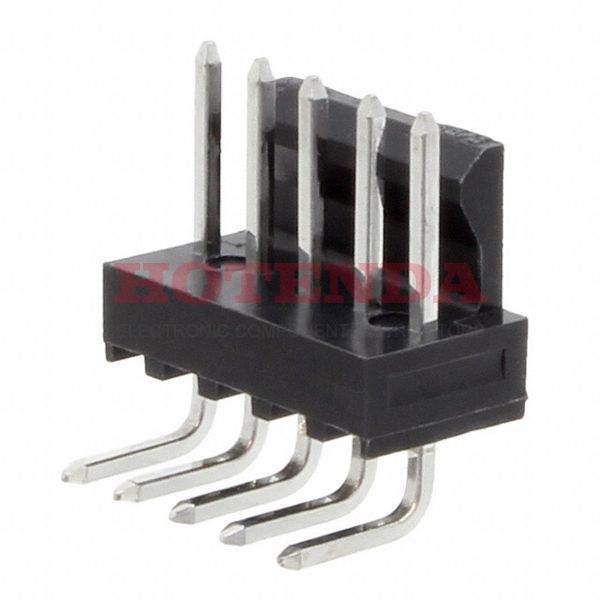

Name: 1718570005
Brand: Molex
SKU: 1718570005
Price: 0.56000 USD
Availability: InStock

new-10%

1718570005

Manufacturer part number:1718570005

Manufacturer:Molex

Description:1718570005 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:1718570005 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Contact Material	Brass
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Polyamide (PA), Nylon
Housing Material	Nylon
Packaging	Bulk
Published	2013
Series	KK 171857
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header
Number of Positions	5
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Applications	Automotive, General Purpose, Medical, Telecommunications
Number of Rows	1
Voltage - Rated	250V
Fastening Type	Friction Lock
Contact Finish - Mating	Tin
Contact Type	Male Pin
Orientation	Right Angle
Insulation Height	0.250 6.35mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Current Rating	4A
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL, CSA
Reliability	COMMERCIAL
Contact Length - Post	0.100 2.54mm
Shrouding	Shrouded - 1 Wall
Number Of PCB Rows	1
Contact Length - Mating	0.265 6.73mm
PCB Contact Pattern	RECTANGULAR
Contact Gender	Male
Lead Length	2.54mm
Body Depth	0.442 inch
Halogen Free	Low Halogen
Mating Post Length	6.73mm
Glow Wire Compliant	Compliant
Plating Thickness	60μin
Contact Finish Thickness - Mating	60.0μin 1.52μm
Contact Finish Thickness - Post	60.0μin 1.52μm
Material Flammability Rating	UL94 V-2
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-2

1718570005 Product Details

1718570005 Overview

Packaging is Header.Through Hole, Right Angle is the mount type.It is necessary to use a Bulk case for packaging the product.It belongs to the KK 171857 Series of products.The best time to use this device is when the temperature is below 105°C.There's a minimum temperature of -40°C for this device.It is possible for the device to be used for the application Automotive, General Purpose, Medical, Telecommunications.There is a mounting hole at Through Hole.
