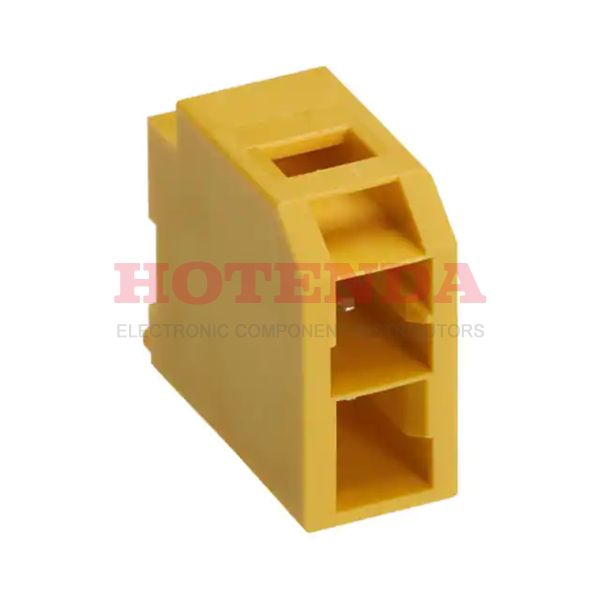

Name: 1510482203
Brand: Molex
SKU: 1510482203
Price: 0.88000 USD
Availability: InStock

new-10%

1510482203

Manufacturer part number:1510482203

Manufacturer:Molex

Description:1510482203 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:1510482203 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Packaging	Tube
Published	2015
Series	CP-6.5 151048
Feature	Board Guide
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Kinked Pin, Solder
Connector Type	Header
Number of Positions	2
Applications	General Purpose, Industrial
Fastening Type	Latch Holder
Contact Finish - Mating	Tin
Contact Type	Male Pin
Insulation Height	0.630 16.00mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Insulation Color	Yellow
Row Spacing - Mating	0.256 (6.50mm)
Contact Length - Post	0.150 3.81mm
Shrouding	Shrouded - 4 Wall
Contact Length - Mating	0.348 8.85mm
Contact Finish Thickness - Mating	50.0μin 1.27μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

1510482203 Product Details

1510482203 Overview

Packaging is in the form of Header.This device has a Through Hole mounting type.This product is packaged in a case marked Tube.A product of the CP-6.5 151048 Series, it belongs to the range of products of that series.You can use it for General Purpose, Industrial.This feature makes it more powerful in a number of ways due to its Board Guide feature.
