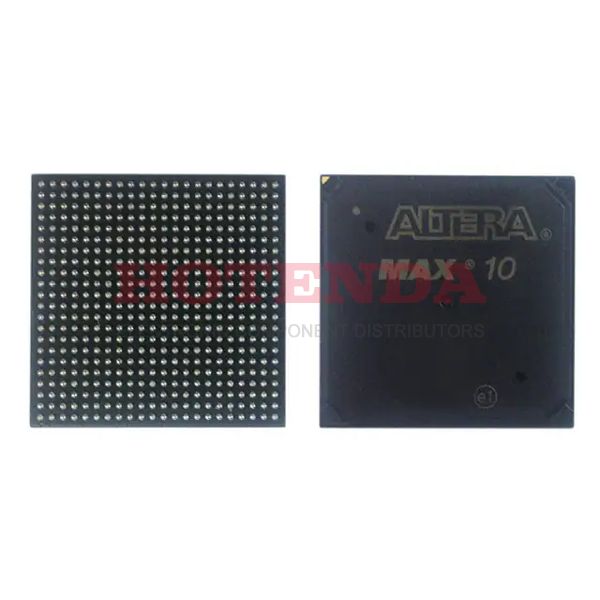

10M08DCU324I7G Overview
In the 324-LFBGA package, you will find fpga chips. FIELD PROGRAMMABLE GATE ARRAY is the component of this type of FPGA. Having 246 I/Os makes data transfers more coherent. Logic elements/cells form the fundamental building block of a computer. In order for the device to operate, a supply voltage of 1.2V volts needs to be provided. A Field Programmable Gate Arrays-series FPGA part. FPGA modules can be attached to development boards using a Surface Mount-connector. Fpga chips operates wFpga chipsh a supply voltage of 1.15V~1.25V. As part of the MAX? 10 series of FPGAs, it is a type of FPGA. During the operation of the system, the operating temperature should remain within the range of -40°C~100°C TJ. In this device, there are 246 outputs that can be used. Using the Tray layout, this FPGA model can be contained in a very small amount of space. 324 terminations are present in total. A device like this one offers 387072 RAM bits, which is a considerable amount of memory. The FPGA is built as an array of 500 latches or CLBs. An external power supply of 1.2V is required to power the device.
10M08DCU324I7G Features
246 I/Os
Up to 387072 RAM bits
10M08DCU324I7G Applications
There are a lot of Intel 10M08DCU324I7G FPGAs applications.
- Data Center
- Secure Communication
- Defense Applications
- Automation
- Medical ultrasounds
- Scientific Instruments
- Server Applications
- Data center search engines
- Medical Applications
- High Performance Computing
