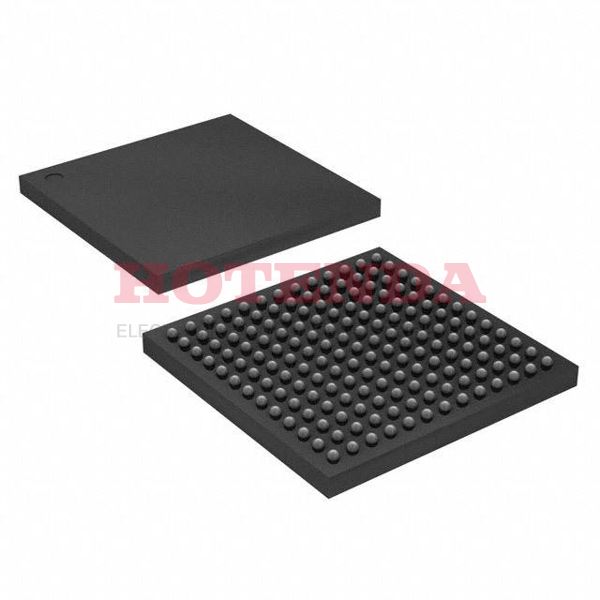

10M02SCU169A7G Overview
This package is included in the 169-LFBGA package and is available for purchase. The FIELD PROGRAMMABLE GATE ARRAY-series of FPGAs are composed of this type. Fpga chips is programmed wFpga chipsh 130 I/Os for transferring data in a more coherent manner. A fundamental building block consists of 2000 logic elements/cells. Part of the Field Programmable Gate Arrays family, this FPGA part is a programmable gate array. The Surface Mount-slot on the development board allows you to attach the FPGA module. There is a 2.85V~3.465V-volt supply voltage required for the device to operate. The MAX? 10 series FPGA is a type of FPGA that belongs to the MAX? 10 family of FPGAs. When operating the machine, it is important to keep the temperature within -40°C~125°C TJ range. The device has 130 outputs that are integrated into it. There is an FPGA model contained in Tray in order to conserve space. As a whole, it has 169 terminations. The RAM bits that this device offer is 110592. An array of 125 LABs/CLBs is built into the FPGA. In order for fpga electronics to work, fpga electronics requires a 3/3.3V power supply.
10M02SCU169A7G Features
130 I/Os
Up to 110592 RAM bits
10M02SCU169A7G Applications
There are a lot of Intel 10M02SCU169A7G FPGAs applications.
- Wired Communications
- Digital signal processing
- Computer hardware emulation
- Medical Electronics
- Development Boards and Shields for Microcontrollers
- OpenCL
- Solar Energy
- Video & Image Processing
- Data Mining
- Medical Applications
