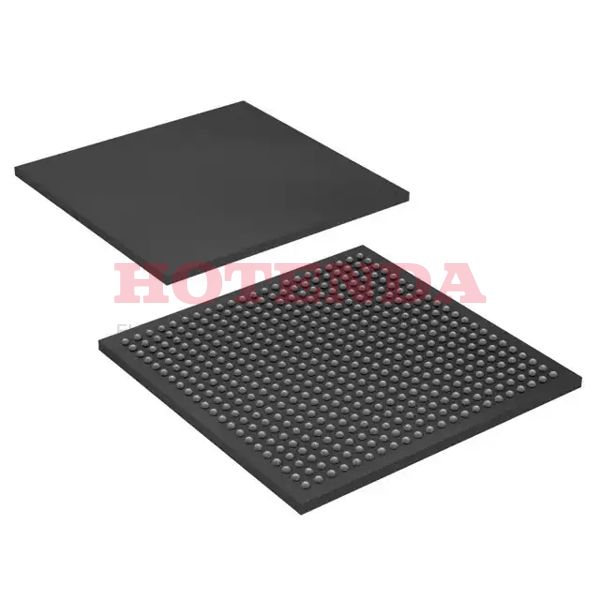

2.05mm mm FPGAs Cyclone? 10 LP Series 484-FBGA 0.8mm mm 484
SOT-23
10CL055YU484C6G Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
8 Weeks
Mounting Type
Surface Mount
Package / Case
484-FBGA
Surface Mount
YES
Operating Temperature
0°C~85°C TJ
Packaging
Tray
Series
Cyclone® 10 LP
Part Status
Active
Moisture Sensitivity Level (MSL)
3 (168 Hours)
Number of Terminations
484
Voltage - Supply
1.2V
Terminal Position
BOTTOM
Terminal Form
BALL
Peak Reflow Temperature (Cel)
NOT SPECIFIED
Supply Voltage
1.2V
Terminal Pitch
0.8mm
[email protected] Reflow Temperature-Max (s)
NOT SPECIFIED
JESD-30 Code
S-PBGA-B484
Number of I/O
321
Programmable Logic Type
FIELD PROGRAMMABLE GATE ARRAY
Number of Logic Elements/Cells
55856
Total RAM Bits
2396160
Number of LABs/CLBs
3491
Height Seated (Max)
2.05mm
Length
19mm
Width
19mm
RoHS Status
RoHS Compliant
In-Stock:1632 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$73.92000
$73.92
25
$70.22040
$1755.51
100
$67.41600
$6741.6
10CL055YU484C6G Product Details
10CL055YU484C6G Description
The 10CL055YU484C6G is the Intel® Intel Cyclone® 10 LP FPGA optimized for low cost and low static power, making them ideal for high-volume and cost-sensitive applications.
10CL055YU484C6G Features
Low-cost, low-power FPGA fabric
1.0 V and 1.2 V core voltage options
Available in commercial, industrial, and automotive temperature grades
Several package types and footprints:
- FineLine BGA (FBGA)
- Enhanced Thin Quad Flat Pack (EQFP)
- Ultra FineLine BGA (UBGA)
- Micro FineLine BGA (MBGA)
Multiple device densities with pin migration capability
RoHS6 compliance
Logic elements (LEs)- four-input look-up table (LUT) and register
Abundant routing/metal interconnect between all LEs
M9K- 9-kilobits (Kb) of embedded SRAM memory blocks, cascadable
Configurable as RAM (single port, simple dual-port, or true dual port), FIFO buffers, or ROM
One 18 x 18 or two 9 x 9 multiplier modes, cascadable
A complete suite of DSP IPs for algorithmic acceleration
10CL055YU484C6G Applications
Industrial and automotive
Broadcast, wireline, and wireless
Compute and storage
Government, military, and aerospace
Medical, consumer, and smart energy
