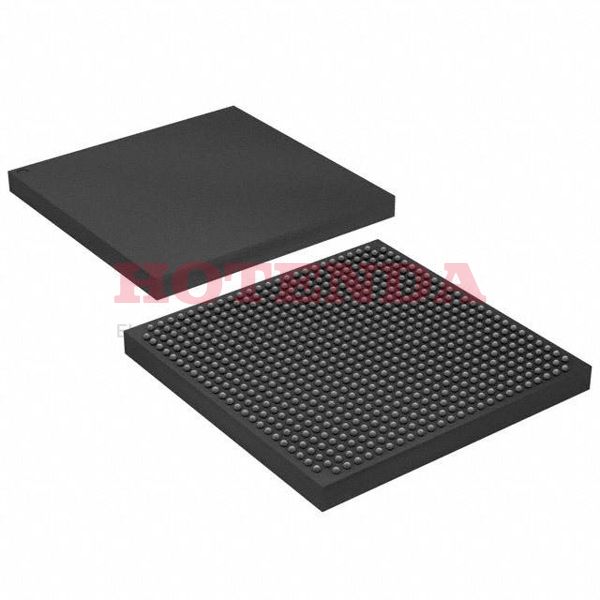

10AX027E2F27E2SG Overview
There are two packages that contain fpga chips: 672-BBGA, FCBGA package and X package. A FIELD PROGRAMMABLE GATE ARRAY-based FPGA is one of these types. 240 I/Os are available for transferring data more efficiently. A fundamental building block is made up of 270000 logic elements/cells. 0.9V volts power it. There is a Field Programmable Gate Arrays family component in this FPGA part. This FPGA module can be attached to the development board with a Surface Mount. The supply voltage of the device is 0.87V~0.98V , at which it runs. This is a type of FPGA that is part of the Arria 10 GX series of FPGAs. Fpga chips is recommended that the operating temperature be kept wFpga chipshin the range 0°C~100°C TJ while the machine is operating. A device such as this one has 240 outputs built into it. Unlike other FPGA models, this one is contained in Tray for the sake of space saving. 672 terminations are present in total. There are 17870848 RAM bits that are available with this device. An array of 101620 LABs/CLBs is built into the FPGA. This is a battery operated device that operates on 0.9V.
10AX027E2F27E2SG Features
240 I/Os
Up to 17870848 RAM bits
10AX027E2F27E2SG Applications
There are a lot of Intel 10AX027E2F27E2SG FPGAs applications.
- ADAS
- Camera time adjustments
- Secure Communication
- Software-defined radios
- Defense Applications
- Cryptography
- Automotive
- Wired Communications
- Automotive driver's assistance
- Digital signal processing
