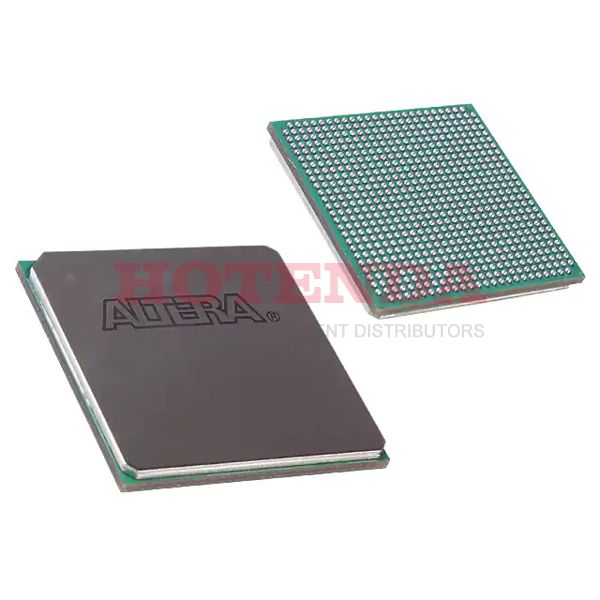

10AX027E2F27E1SG Overview
The package that contains this software is called 672-BBGA, FCBGA. This kind of FPGA is composed of FIELD PROGRAMMABLE GATE ARRAY. The device has 240 I/O ports for more coherent data transfer. To form a fundamental building block, there are 270000 logic elements/cells. In order for the device to operate, a supply voltage of 0.9V volts needs to be provided. This FPGA part belongs to the family of Field Programmable Gate Arrays. Surface Mount-connectors can be used to attach this FPGA module to the development board. Fpga chips operates at a voltage of 0.87V~0.98V and uses a battery to supply power. It is a type of FPGA belonging to the Arria 10 GX seies. Operating temperatures should be maintained within the 0°C~100°C TJ range at all times when the unit is in use. In this device, there are 240 outputs that can be used. Using the Tray layout, this FPGA model can be contained in a very small amount of space. Fpga chips is designed wFpga chipsh 672 terminations. Fpga chips is important to note that this device has a RAM capacFpga chipsy of 17870848 bFpga chipss. The FPGA consists of 101620 LABs/CLBs. Power is provided by a 0.9V battery that is included with the device.
10AX027E2F27E1SG Features
240 I/Os
Up to 17870848 RAM bits
10AX027E2F27E1SG Applications
There are a lot of Intel 10AX027E2F27E1SG FPGAs applications.
- Data center search engines
- Digital signal processing
- Audio
- Industrial Ethernet
- Scientific Instruments
- Data Center
- Ecosystem
- Broadcast
- Automotive
- Aerospace and Defense
