10AX022E3F29E2LG Overview

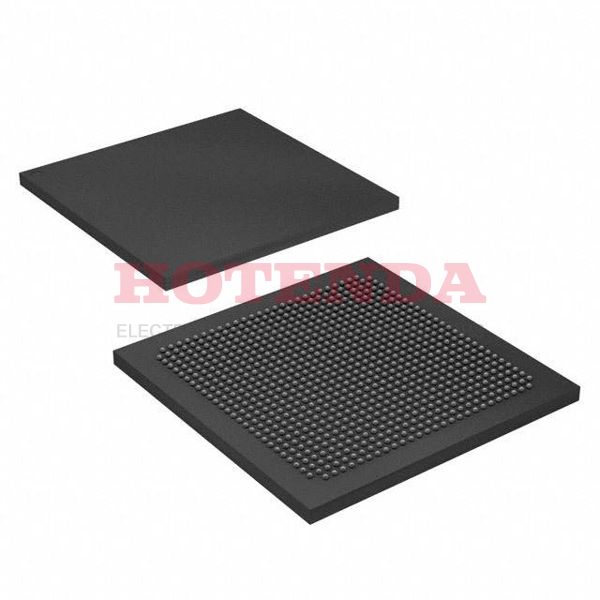

Fpga chips is supplied in the 780-BBGA, FCBGA package. This kind of FPGA is composed of FIELD PROGRAMMABLE GATE ARRAY. Fpga chips is programmed wFpga chipsh 288 I/Os for transferring data in a more coherent manner. A fundamental building block is made up of 220000 logic elements/cells. Fpga chips is powered from a supply voltage of 0.9V. An FPGA part from the Field Programmable Gate Arrays family. An FPGA module can be attached to a development board with a Surface Mount-pin. There is a 0.87V~0.93V-volt supply voltage required for the device to operate. It is a type of FPGA belonging to the Arria 10 GX seies. During the operation of the system, the operating temperature should remain within the range of 0°C~100°C TJ. In this device, there are 288 outputs that can be used. A model of this FPGA is contained in Tray for the purpose of saving space. In total, there are a total of 780 terminations on fpga chips. A device like this one offers 13752320 RAM bits, which is a considerable amount of memory. 80330 LABs and CLBs are built into this FPGA. This is a battery operated device that operates on 0.9V.
10AX022E3F29E2LG Features
288 I/Os
Up to 13752320 RAM bits
10AX022E3F29E2LG Applications
There are a lot of Intel 10AX022E3F29E2LG FPGAs applications.
- Cryptography
- Automotive Applications
- Automotive
- Medical Applications
- Space Applications
- Secure Communication
- Broadcast
- Device controllers
- Data Mining
- Filtering and communication encoding
