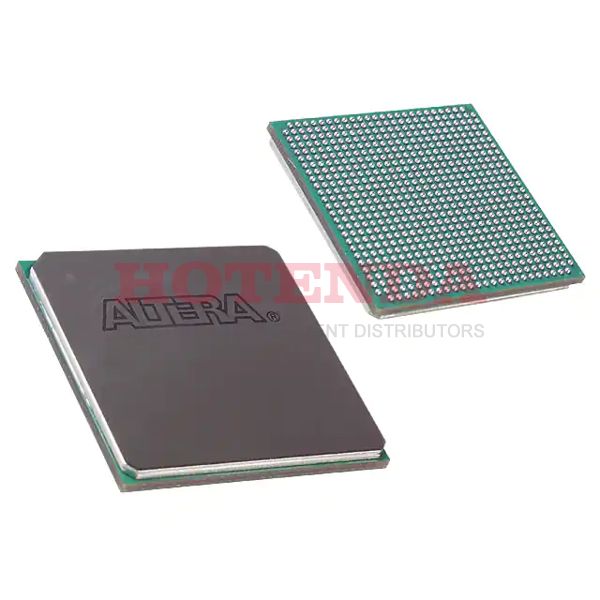

10AX016E3F27E2SG Overview
A 672-BBGA, FCBGA package contains it, and it is available for download. Fpga chips consists of FIELD PROGRAMMABLE GATE ARRAY elements. This device features 240 I/Os in order to transfer data in a more efficient manner. In order to construct a fundamental building block, 160000 logic elements/cells are required. Power is provided by a 0.9V-volt supply. There is a Field Programmable Gate Arrays family component in this FPGA part. With a Surface Mount connector, this FPGA module can be attached to the development board. In order to operate it, it requires a voltage supply of 0.87V~0.98V . It is a type of FPGA belonging to the Arria 10 GX seies. Operating temperatures should be maintained within the 0°C~100°C TJ range at all times when the unit is in use. This device is equipped with 240 separate outputs, which makes it a very versatile device. It is for space saving reasons that this FPGA model is contained in Tray. Fpga chips is designed wFpga chipsh 672 terminations. Having a RAM bit size of 10086400 means that this device will offer you a lot of memory. 61510 LABs/CLBs are configured on this FPGA. Power is supplied to the device by a 0.9V battery.
10AX016E3F27E2SG Features
240 I/Os
Up to 10086400 RAM bits
10AX016E3F27E2SG Applications
There are a lot of Intel 10AX016E3F27E2SG FPGAs applications.
- ASIC prototyping
- Medical Applications
- Solar Energy
- Scientific Instruments
- Military DSP
- Telecommunication
- Software-defined radios
- Server Applications
- Automotive driver's assistance
- Image processing
