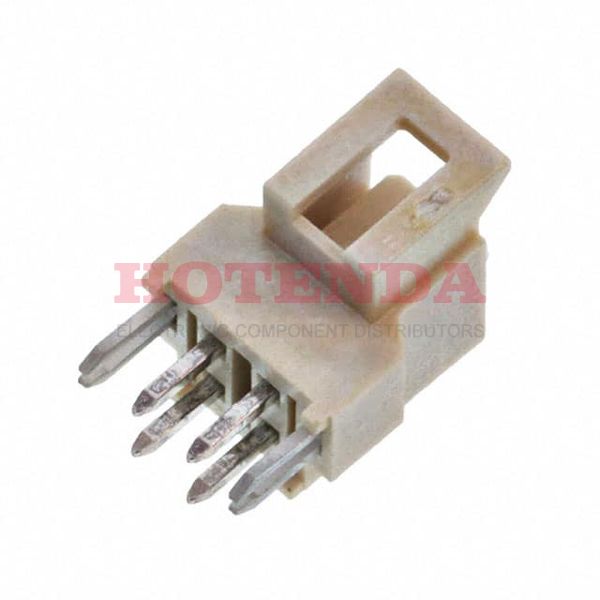

Name: 1053122304
Brand: Molex
SKU: 1053122304
Price: 2.21000 USD
Availability: InStock

new-10%

1053122304

Manufacturer part number:1053122304

Manufacturer:Molex

Description:1053122304 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:1053122304 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Brass
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-40°C~105°C
Packaging	Tray
Published	2016
Series	Nano-Fit 105312
Feature	Board Lock
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Solder
ECCN Code	EAR99
Connector Type	Header
Number of Positions	4
Applications	Automotive, General Purpose, Industrial, Medical, Military, Telecommunications
Number of Rows	2
Voltage - Rated	250V
Fastening Type	Latch Holder
Contact Finish - Mating	Gold
Contact Type	Male Pin
Insulation Height	0.356 9.05mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Pitch - Mating	0.098 2.50mm
Insulation Color	Natural
Row Spacing - Mating	0.098 (2.50mm)
Contact Length - Post	0.126 3.20mm
Shrouding	Shrouded - 4 Wall
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30.0μin 0.76μm
Contact Finish Thickness - Post	59.0μin 1.50μm
Stack Height (Mating)	21.30mm
RoHS Status	ROHS3 Compliant

1053122304 Product Details

1053122304 Overview

The product is packaged in Header.Through Hole is the mounting type.Packaged in a Tray case.As a product of the Nano-Fit 105312 Series, it can be found in this category.An application for the device could be Automotive, General Purpose, Industrial, Medical, Military, Telecommunications.Its Board Lock feature renders it more powerful in many ways.Operating temperature is -40°C~105°C.
