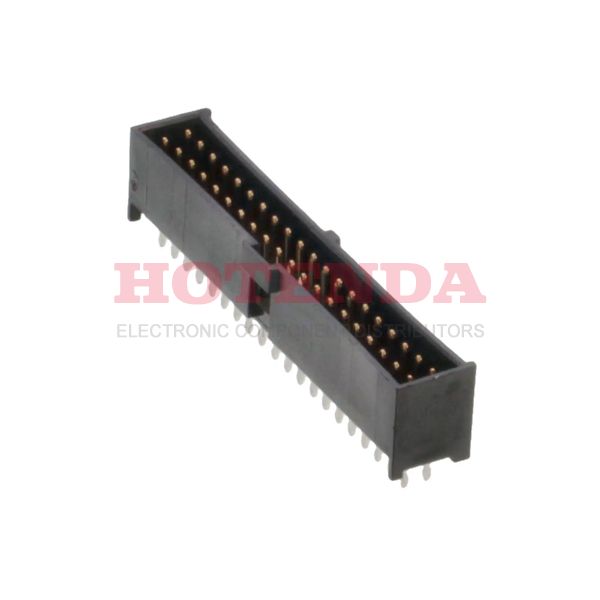

Name: 0901301240
Brand: Molex
SKU: 0901301240
Price: 7.38000 USD
Availability: InStock

new

0901301240

Manufacturer part number:0901301240

Manufacturer:Molex

Description:0901301240 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0901301240 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Contact Material	Brass
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polyester, Glass Filled
Packaging	Tray
Series	C-Grid III 90130
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	40
Applications	Automotive, General Purpose
Number of Rows	2
Fastening Type	Latch Holder
Contact Finish - Mating	Gold
Contact Type	Male Pin
Insulation Height	0.429 10.90mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.114 2.90mm
Shrouding	Shrouded - 4 Wall
Contact Finish - Post	Tin
Contact Length - Mating	0.266 6.75mm
Overall Contact Length	0.510 12.95mm
Contact Finish Thickness - Mating	15.0μin 0.38μm
Contact Finish Thickness - Post	118.1μin 3.00μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0901301240 Product Details

0901301240 Overview

The product comes in a package of Header.The mounting type of the device is Through Hole.To package the product, we use a Tray case.Among the products in the C-Grid III 90130 Series, it is one of the most popular.The device may be used for the following applications: Automotive, General Purpose.
