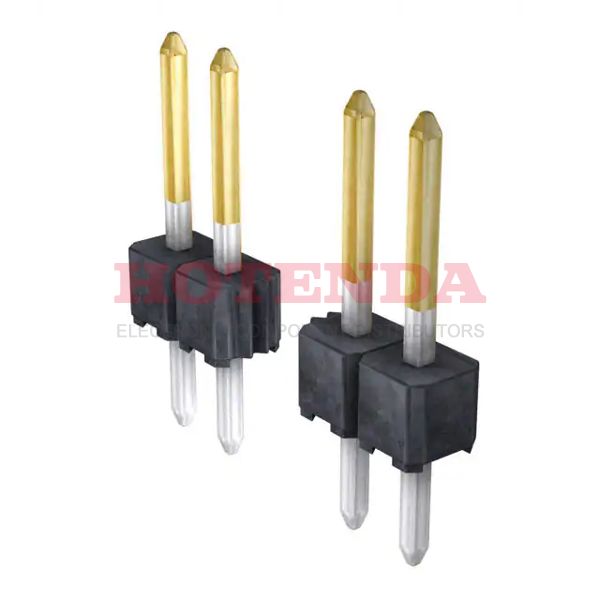

Name: 0901201086
Brand: Molex
SKU: 0901201086
Price: 1.44000 USD
Availability: InStock

new-10%

0901201086

Manufacturer part number:0901201086

Manufacturer:Molex

Description:0901201086 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0901201086 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	15 Weeks
Contact Material	Brass
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polyester, Glass Filled
Operating Temperature	-55°C~125°C
Packaging	Tray
Series	C-Grid III 90120
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header, Breakaway
Number of Positions	6
Applications	Automotive, General Purpose
Number of Rows	1
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Terminal Pitch	2.54mm
Insulation Height	0.098 2.50mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	CSA, UL
Contact Length - Post	0.114 2.90mm
Shrouding	Unshrouded
Number Of PCB Rows	1
Contact Finish - Post	Tin
Contact Length - Mating	0.266 6.75mm
PCB Contact Pattern	RECTANGULAR
UL Flammability Code	94V-0
Rated Current (Signal)	3A
Overall Contact Length	0.478 12.15mm
Plating Thickness	FLASH inch
Contact Finish Thickness - Mating	2.00μin 0.051μm
Contact Finish Thickness - Post	118.1μin 3.00μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0901201086 Product Details

0901201086 Overview

Packaging is in the form of Header, Breakaway.Through Hole is the mounting type for the device.Packaging the product involves using a Tray case.The product is part of the C-Grid III 90120 Series.There is the possibility of using the device for Automotive, General Purpose.Device runs at -55°C~125°C Operating Temperature.
