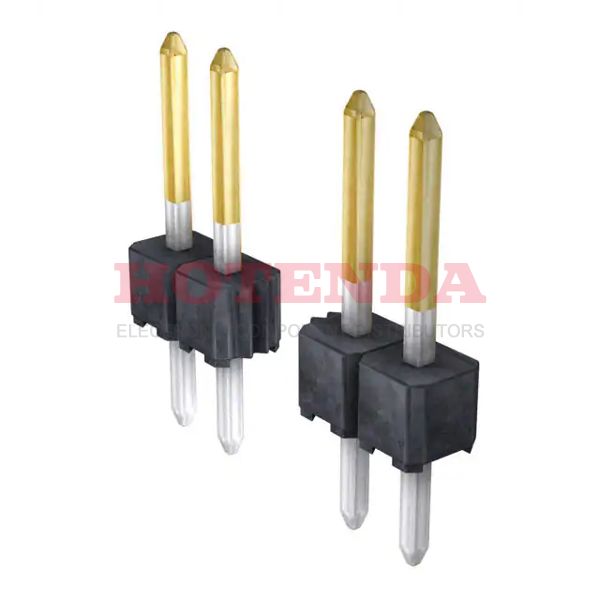

Name: 0901200926
Brand: Molex
SKU: 0901200926
Price: 2.10000 USD
Availability: InStock

new-10%

0901200926

Manufacturer part number:0901200926

Manufacturer:Molex

Description:0901200926 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0901200926 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Brass
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polyester, Glass Filled
Operating Temperature	-55°C~125°C
Packaging	Tray
Series	C-Grid III 90120
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header, Breakaway
Number of Positions	6
Applications	Automotive, General Purpose
Number of Rows	1
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Type	Male Pin
Insulation Height	0.098 2.50mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Contact Length - Post	0.114 2.90mm
Shrouding	Unshrouded
Contact Finish - Post	Tin
Contact Length - Mating	0.266 6.75mm
Overall Contact Length	0.478 12.15mm
Contact Finish Thickness - Mating	30.0μin 0.76μm
Contact Finish Thickness - Post	118.1μin 3.00μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0901200926 Product Details

0901200926 Overview

Currently, it is packaged in Header, Breakaway.Through Hole indicates that the device is mounted.Packaged in a Tray case.This product is in the C-Grid III 90120 Series.You can use it for Automotive, General Purpose.The device runs in -55°C~125°C Operating Temperature.
