Name: 0901200127
Brand: Molex
SKU: 0901200127
Price: 1.45000 USD
Availability: InStock

new-10%

0901200127

Manufacturer part number:0901200127

Manufacturer:Molex

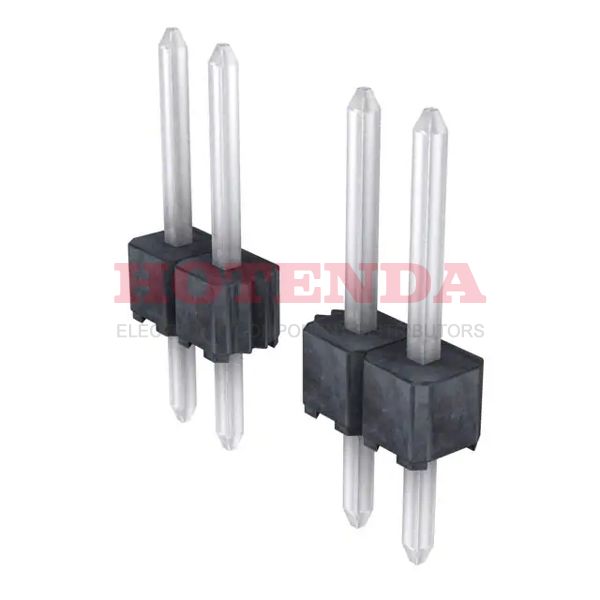

Description:C-Grid III 90120 Series 1-Row Header, Breakaway Solder Brass Bulk Through Hole Tin Polyester, Glass Filled 7-Position Board to Board or Cable 0.098 2.50mm Height

Case Package:SOT-23

Datasheet:0901200127 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Brass
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polyester, Glass Filled
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	C-Grid III 90120
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header, Breakaway
Number of Positions	7
Applications	Automotive, General Purpose
Number of Rows	1
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Terminal Pitch	2.54mm
Insulation Height	0.098 2.50mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Contact Length - Post	0.114 2.90mm
Shrouding	Unshrouded
Contact Length - Mating	0.266 6.75mm
Overall Contact Length	0.478 12.15mm
Contact Finish Thickness - Mating	118.1μin 3.00μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0901200127 Product Details

0901200127 Overview

A Header, Breakaway packaging is included.It's mounted Through Hole.We use a Bulk case to package the product.It's from the C-Grid III 90120 Series.The device could be used for Automotive, General Purpose.-55°C~125°C Operating Temperature is what the device runs at.
