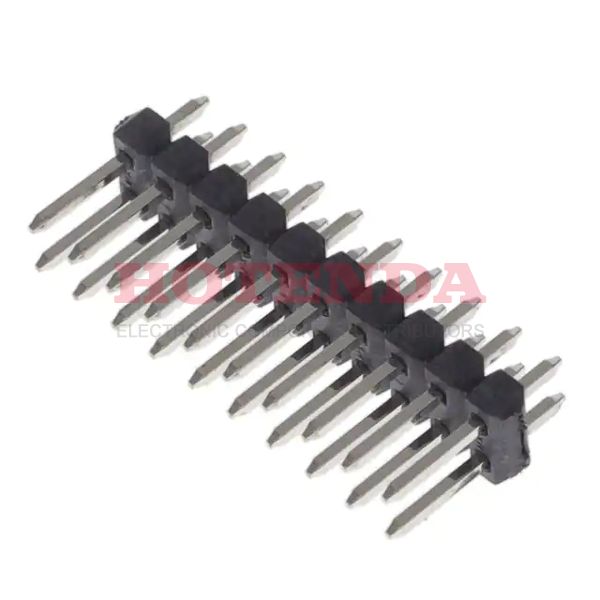

Name: 0879142016
Brand: Molex
SKU: 0879142016
Price: 1.44000 USD
Availability: InStock

new-10%

0879142016

Manufacturer part number:0879142016

Manufacturer:Molex

Description:0879142016 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0879142016 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Housing Material	Polymer
Packaging	Tray
Series	C-Grid 87914
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header, Breakaway
Number of Positions	20
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Applications	Automotive, General Purpose, Lighting, Medical, Telecommunications
Number of Rows	2
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Orientation	Vertical
Depth	4.98mm
Insulation Height	0.090 2.29mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Current Rating	3A
Pitch - Mating	0.100 2.54mm
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.110 2.79mm
Shrouding	Unshrouded
Contact Length - Mating	0.230 5.84mm
UL Flammability Code	94V-0
Housing Color	Black
Overall Contact Length	0.430 10.92mm
Number of Circuits	18
Length	25.4mm
Contact Finish Thickness - Mating	100.0μin 2.54μm
Contact Finish Thickness - Post	100.0μin 2.54μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0879142016 Product Details

0879142016 Overview

The product is packaged in Header, Breakaway.The mounting type of the device is Through Hole.In order to package the product, a Tray case is used.It belongs to the C-Grid 87914 Series of products.It works best at below 105°C.Temperatures below -55°C are required for operation of this device.This device may be used for the purpose of Automotive, General Purpose, Lighting, Medical, Telecommunications.In this case, Through Hole mounts the part.It consists of circuits with a 18 value.
