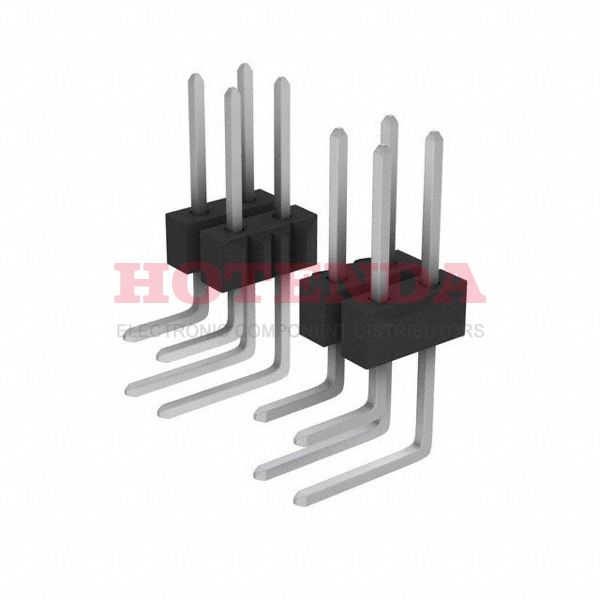

Name: 0717640010
Brand: Molex
SKU: 0717640010
Price: 2.46000 USD
Availability: InStock

new-10%

0717640010

Manufacturer part number:0717640010

Manufacturer:Molex

Description:0717640010 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0717640010 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Copper Alloy
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Thermoplastic
Packaging	Tube
Series	C-Grid 71764
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header, Breakaway
Number of Positions	10
Applications	Automotive, General Purpose, Lighting, Medical, Telecommunications
Number of Rows	2
Additional Feature	LOW PROFILE
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Insulation Height	0.200 5.08mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.110 2.79mm
Shrouding	Unshrouded
Contact Length - Mating	0.240 6.10mm
UL Flammability Code	94V-0
Contact Finish Thickness - Mating	150.0μin 3.81μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0717640010 Product Details

0717640010 Overview

Packaging is Header, Breakaway.Through Hole, Right Angle indicates that the device is mounted.Tube cases are used to package the product.Product number C-Grid 71764 belongs to the C-Grid 71764 Series.Additionally, there are features like LOW PROFILE, just to name a few.Automotive, General Purpose, Lighting, Medical, Telecommunications is one possible application.
