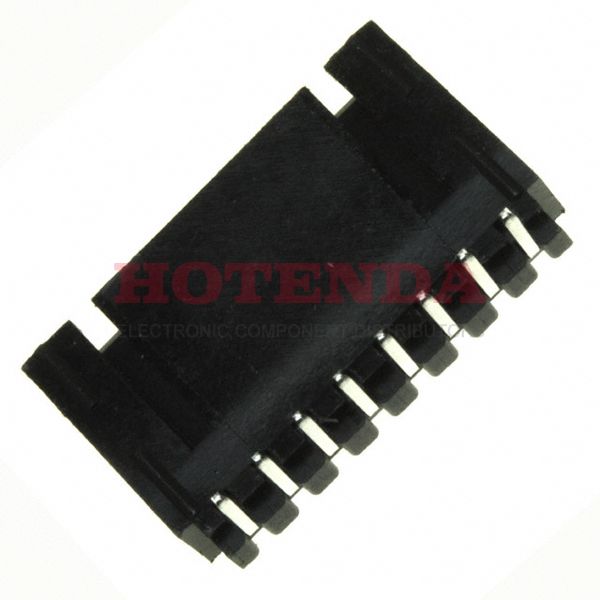

Name: 0705530042
Brand: Molex
SKU: 0705530042
Price: 2.63000 USD
Availability: InStock

new-10%

0705530042

Manufacturer part number:0705530042

Manufacturer:Molex

Description:0705530042 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0705530042 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	5 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Polyester, Glass Filled
Operating Temperature	-40°C~105°C
Packaging	Tube
Series	SL 70553
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	8
Applications	Automotive, General Purpose, Industrial, Medical
Number of Rows	1
Voltage - Rated	250V
Fastening Type	Latch Holder
Contact Finish - Mating	Tin
Contact Type	Male Pin
Insulation Height	0.215 5.45mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Contact Length - Post	0.130 3.30mm
Shrouding	Shrouded - 4 Wall
Contact Length - Mating	0.240 6.10mm
Contact Finish Thickness - Mating	150.0μin 3.81μm
Contact Finish Thickness - Post	150.0μin 3.81μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0705530042 Product Details

0705530042 Overview

You get it in Header packaging.Through Hole, Right Angle is the mounting type for the device.We use a Tube case to package the product.It belongs to the SL 70553 Series of products.There's an application for the device called Automotive, General Purpose, Industrial, Medical.Running in -40°C~105°C Operating Temperature.
