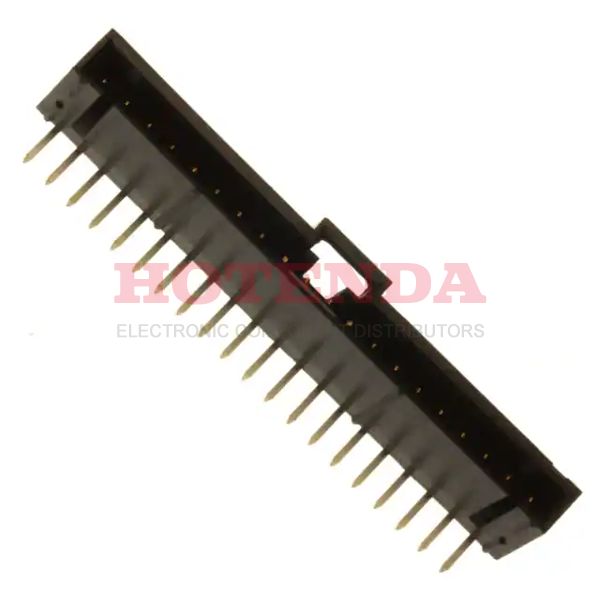

Name: 0705530019
Brand: Molex
SKU: 0705530019
Price: 8.02000 USD
Availability: InStock

new-10%

0705530019

Manufacturer part number:0705530019

Manufacturer:Molex

Description:0705530019 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0705530019 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Polyester, Glass Filled
Material	Brass
Housing Material	Polyester
Operating Temperature	-40°C~105°C
Packaging	Tube
Series	SL 70553
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	20
Applications	Automotive, General Purpose, Industrial, Medical
Number of Rows	1
Gender	Male
Fastening Type	Latch Holder
Voltage - Rated DC	250V
Contact Finish - Mating	Gold
Contact Type	Male Pin
Orientation	Right Angle
Depth	13.59mm
Insulation Height	0.215 5.45mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Current Rating	3A
Pitch - Mating	0.100 2.54mm
Contact Length - Post	0.130 3.30mm
Shrouding	Shrouded - 4 Wall
Lead Pitch	2.54mm
Contact Finish - Post	Tin
Contact Length - Mating	0.240 6.10mm
Housing Color	Black
Contact Resistance	30mOhm
Number of Circuits	19
Length	53.35mm
Contact Finish Thickness - Mating	15.0μin 0.38μm
Contact Finish Thickness - Post	74.8μin 1.90μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

0705530019 Product Details

0705530019 Overview

It comes in Header packaging.There is a mounting type of Through Hole, Right Angle for this device.We pack the product in a Tube case.This product is part of the SL 70553 Series.A possible application of the device would be Automotive, General Purpose, Industrial, Medical.Through Hole is the mounting point for the part.It consists of circuits with a 19 value.This device runs at -40°C~105°C operating temperature.
