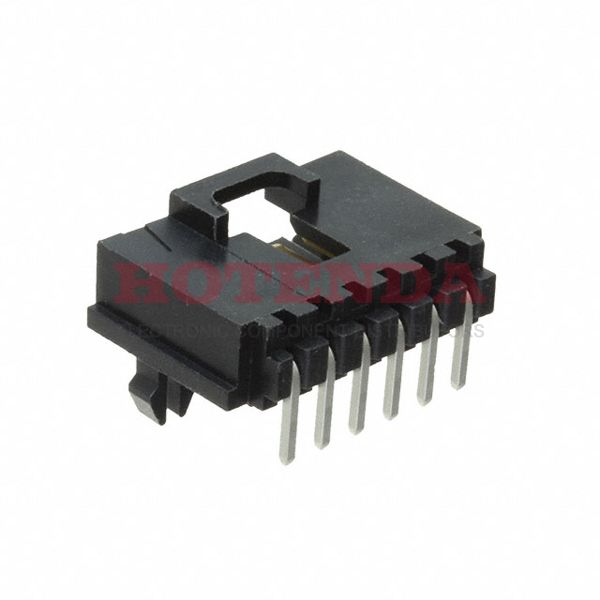

Name: 0705510040
Brand: Molex
SKU: 0705510040
Price: 2.78000 USD
Availability: InStock

new-10%

0705510040

Manufacturer part number:0705510040

Manufacturer:Molex

Description:0705510040 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0705510040 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Polyester, Glass Filled
Operating Temperature	-40°C~105°C
Packaging	Bulk
Series	SL 70551
Feature	Board Lock
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	6
Applications	Automotive, General Purpose, Industrial, Medical
Number of Rows	1
Voltage - Rated	250V
Fastening Type	Latch Holder
Contact Finish - Mating	Gold
Contact Type	Male Pin
Insulation Height	0.215 5.45mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Contact Length - Post	0.130 3.30mm
Shrouding	Shrouded - 4 Wall
Contact Finish - Post	Tin
Contact Length - Mating	0.240 6.10mm
Contact Finish Thickness - Mating	15.0μin 0.38μm
Contact Finish Thickness - Post	74.8μin 1.90μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0705510040 Product Details

0705510040 Overview

This product is packaged in a Header cartonThrough Hole, Right Angle indicates that the device is mounted.Bulk cases are used to package the product.This product is in the SL 70551 Series.The device could be used for Automotive, General Purpose, Industrial, Medical.Its Board Lock feature renders it more powerful in many ways.Operating temperature is set to -40°C~105°C.
