Name: 0705450037
Brand: Molex
SKU: 0705450037
Price: 1.17000 USD
Availability: InStock

new-10%

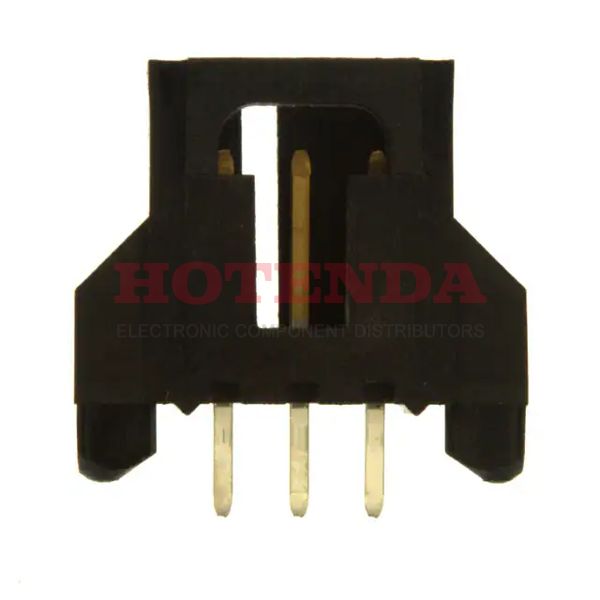

0705450037

Manufacturer part number:0705450037

Manufacturer:Molex

Description:0705450037 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0705450037 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polyester, Glass Filled
Mounting Option 1	LOCKING
Operating Temperature	-40°C~105°C
Packaging	Tube
Series	SL 70545
Feature	Board Guide
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header
Number of Positions	3
Applications	Automotive, General Purpose, Industrial, Medical
Number of Rows	1
Voltage - Rated	250V
Fastening Type	Latch Holder
Contact Finish - Mating	Gold
Contact Type	Male Pin
Insulation Height	0.465 11.80mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL, CSA
Reliability	COMMERCIAL
Contact Length - Post	0.130 3.30mm
Shrouding	Shrouded - 4 Wall
Contact Finish - Post	Tin
Contact Length - Mating	0.240 6.10mm
Rated Current (Signal)	3A
Overall Contact Length	0.470 11.94mm
Durability	50 Cycles
Contact Finish Thickness - Mating	15.0μin 0.38μm
Contact Finish Thickness - Post	74.8μin 1.90μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0705450037 Product Details

0705450037 Overview

The product comes in a package of Header.Through Hole is the mount type.Packaged in a Tube case.The product is a part of the SL 70545 Series.The device could be used for Automotive, General Purpose, Industrial, Medical.Many aspects of its Board Guide feature increase its effectiveness.This device operates at a temperature of -40°C~105°C.
