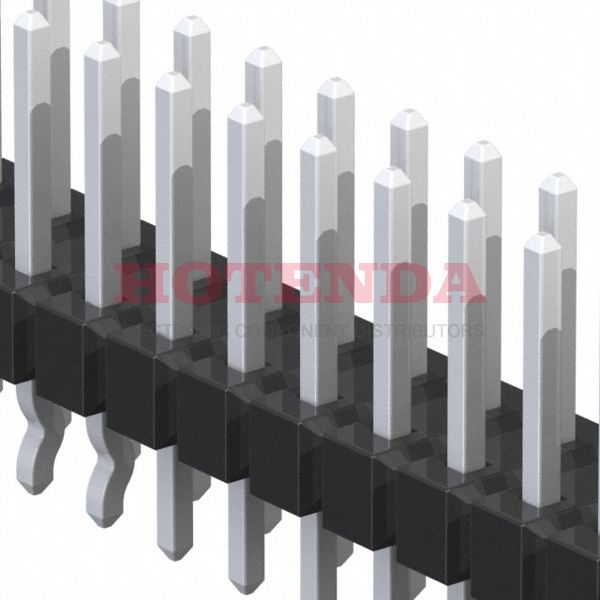

Name: 0702871024
Brand: Molex
SKU: 0702871024
Price: 3.66000 USD
Availability: InStock

new-10%

0702871024

Manufacturer part number:0702871024

Manufacturer:Molex

Description:0702871024 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0702871024 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Material	Brass
Housing Material	Polymer
Packaging	Bulk
Series	C-Grid 70287
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Kinked Pin, Solder
ECCN Code	EAR99
Connector Type	Header, Breakaway
Number of Positions	52
Max Operating Temperature	120°C
Min Operating Temperature	-40°C
Applications	Automotive, General Purpose, Lighting, Medical, Telecommunications
Number of Rows	2
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Orientation	Vertical
Depth	5.08mm
Insulation Height	0.090 2.29mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Current Rating	3A
Pitch - Mating	0.100 2.54mm
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.125 3.18mm
Shrouding	Unshrouded
Contact Length - Mating	0.240 6.10mm
UL Flammability Code	94V-0
Housing Color	Black
Overall Contact Length	0.455 11.56mm
Number of Circuits	50
Max Voltage Rating (DC)	250V
Length	66.04mm
Contact Finish Thickness - Mating	150.0μin 3.81μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0702871024 Product Details

0702871024 Overview

The product is packaged in Header, Breakaway.Its mounting type is Through Hole.A Bulk case is used to package the product.It belongs to the C-Grid 70287 Series of products.Whenever it's below 120°C, it's best to use it.The device must run at -40°C degrees.The device could be used for Automotive, General Purpose, Lighting, Medical, Telecommunications.By Through Hole, the part is mounted.It has 50 circuits.
