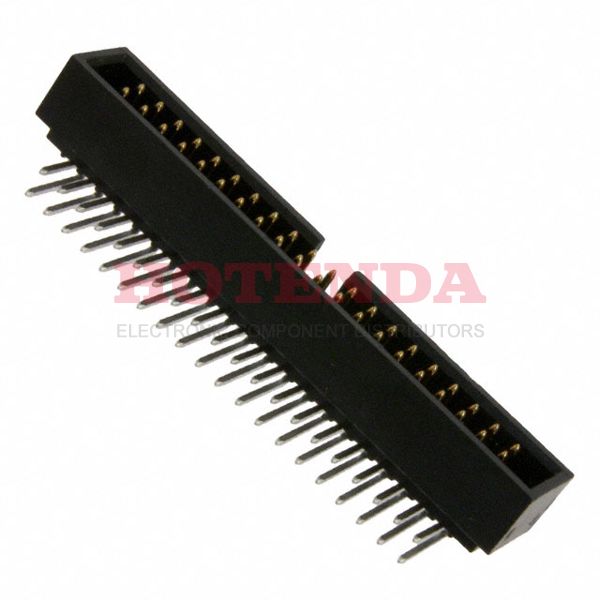

Name: 0702474051
Brand: Molex
SKU: 0702474051
Price: 3.51000 USD
Availability: InStock

new-10%

0702474051

Manufacturer part number:0702474051

Manufacturer:Molex

Description:0702474051 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0702474051 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Packaging	Bulk
Series	C-Grid 70247
Feature	Keying Slot
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	40
Applications	Automotive, General Purpose, Lighting, Medical, Telecommunications
Number of Rows	2
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Type	Male Pin
Insulation Height	0.350 8.89mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.120 3.05mm
Shrouding	Shrouded - 4 Wall
Contact Finish - Post	Tin
Contact Length - Mating	0.240 6.10mm
Contact Finish Thickness - Mating	15.0μin 0.38μm
Contact Finish Thickness - Post	74.8μin 1.90μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0702474051 Product Details

0702474051 Overview

This product is packaged in a Header cartonThis device has a mounting type of Through Hole, Right Angle.Bulk cases are used to package the product.As a product of the C-Grid 70247 Series, it can be found in this category.You can use it for Automotive, General Purpose, Lighting, Medical, Telecommunications.This feature renders it more powerful in a number of ways because of its Keying Slot feature.
