Molex

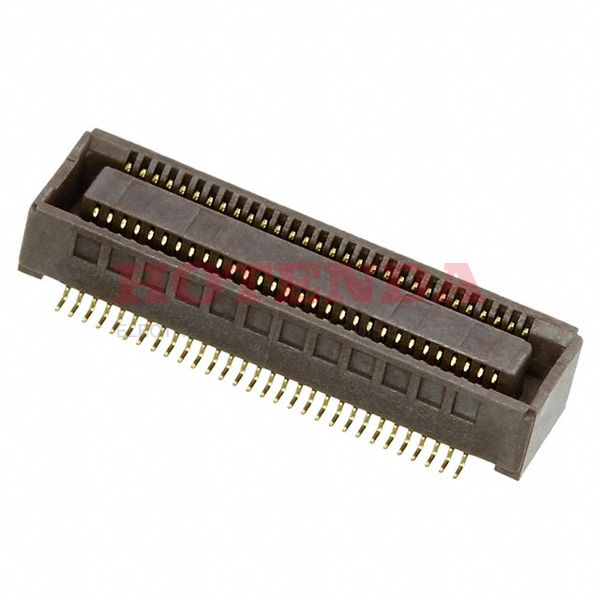

0546840604 datasheet pdf and Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) product details from Molex stock available on our website

SOT-23

0546840604 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 22 Weeks
Contact MaterialNOT SPECIFIED
Mounting Type Surface Mount
PackagingTape & Reel (TR)
Series SlimStack 54684
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Receptacle, Center Strip Contacts
Number of Positions 60
Number of Rows 2
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.016 0.40mm
Total Number of Contacts 60
Contact Finish Gold
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender FEMALE
Contact Finish Thickness 3.94μin 0.10μm
Height Above Board 0.102 2.60mm
Stack Height (Mating) 3.5mm 4mm
RoHS StatusROHS3 Compliant
In-Stock:2629 items

Pricing & Ordering

QuantityUnit PriceExt. Price
375$2.84701$1067.62875
750$2.55500$1916.25

0546840604 Product Details

0546840604 Overview


The packaging is Receptacle, Center Strip Contacts.Tape & Reel (TR) cases are used to package the product.It's mounted Surface Mount.The product is a member of the SlimStack 54684 Series.

0546840604 Features


SlimStack 54684 series
Package / Case: Tape & Reel (TR)
Mounting Type:Surface Mount

0546840604 Applications


There are a lot of Molex 0546840604 Rectangular Connectors applications.

  • Military Technology
  • Embedded systems
  • Instrumentation
  • Medical technology
  • Transportation
  • Telecommunications
  • Measuring & Control Technology
  • Industrial Automation
  • Datacom
  • Automotive Electronics
