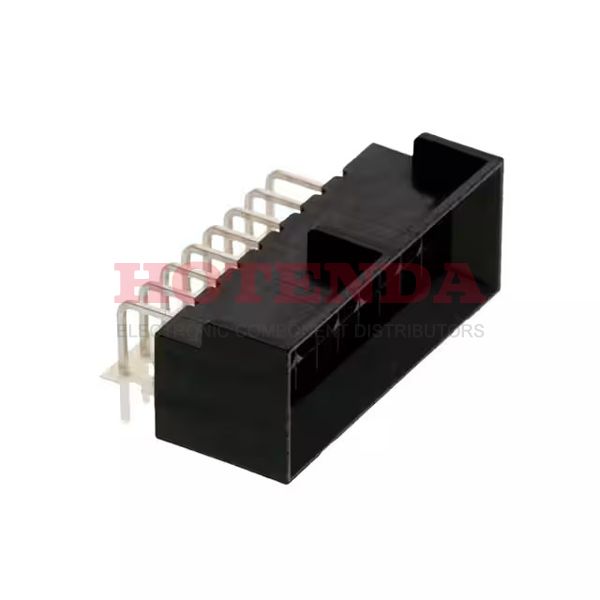

Name: 0444281602
Brand: Molex
SKU: 0444281602
Price: 8.57000 USD
Availability: InStock

new-10%

0444281602

Manufacturer part number:0444281602

Manufacturer:Molex

Description:0444281602 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0444281602 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Contact Material	Brass
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Packaging	Tray
Series	Micro-Fit 3.0 BMI 44428
JESD-609 Code	e3
Feature	Board Lock
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	16
Applications	General Purpose, Medical, Military, Telecommunications
Number of Rows	2
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Terminal Pitch	3mm
Insulation Height	0.469 11.90mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.118 3.00mm
Insulation Color	Black
Row Spacing - Mating	0.118 (3.00mm)
Contact Length - Post	0.138 3.50mm
Shrouding	Shrouded - 4 Wall
Contact Finish - Post	Tin
UL Flammability Code	94V-0
Contact Finish Thickness - Mating	15.0μin 0.38μm
Contact Finish Thickness - Post	100.0μin 2.54μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0444281602 Product Details

0444281602 Overview

Header packaging is included.Through Hole, Right Angle indicates that the device is mounted.A Tray case is used for packaging.Among the products in the Micro-Fit 3.0 BMI 44428 Series, it is one of the most popular.The device may be used for the following applications: General Purpose, Medical, Military, Telecommunications.A number of features make it more powerful because of its Board Lock feature.
