0440680046

0440680046

0440680046

Molex

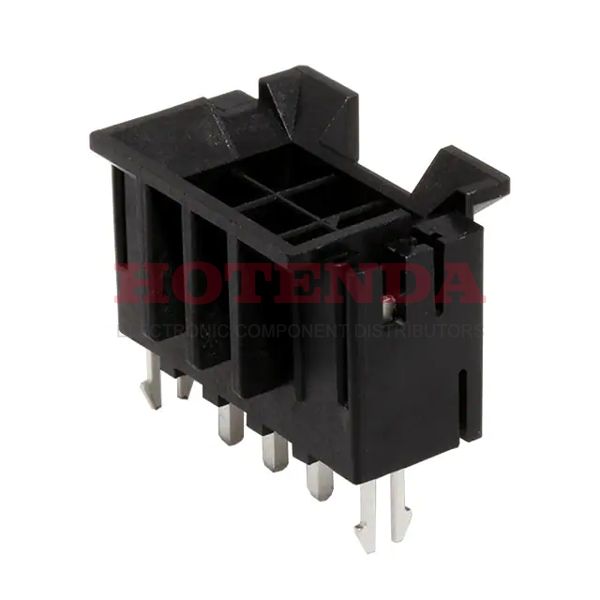

0440680046 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

SOT-23

0440680046 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 7 Weeks
Contact MaterialBrass
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA46), Nylon 4/6
PackagingTray
Series Mini-Fit BMI SMC 44068
Feature Board Lock
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 6
Applications General Purpose, Industrial, Medical, Telecommunications
Number of Rows 2
Fastening TypeLatch Holder
Contact Finish - Mating Tin
Contact Type Male Pin
Insulation Height 0.587 14.91mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.165 4.20mm
Insulation Color Black
Row Spacing - Mating 0.165 (4.20mm)
Contact Length - Post 0.177 4.50mm
Shrouding Shrouded - 4 Wall
Contact Finish Thickness - Mating 100.0μin 2.54μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Material Flammability Rating UL94 V-0
RoHS StatusROHS3 Compliant
In-Stock:1846 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$3.18000$3.18
10$3.05500$30.55
100$2.54600$254.6
560$2.16411$1211.9016

0440680046 Product Details

0440680046 Overview


The product comes in a package of Header.Through Hole is the mounting type.An orange Tray case is used to package the product.It's part of the Mini-Fit BMI SMC 44068 Series.You can use it for General Purpose, Industrial, Medical, Telecommunications.As a result of its Board Lock feature, it possesses a great deal of power.

0440680046 Features


Mini-Fit BMI SMC 44068 series

0440680046 Applications


There are a lot of Molex 0440680046 Rectangular Connectors applications.

  • Communication
  • Measuring & Control Technology
  • Telecommunications
  • Military Technology
  • Embedded systems
  • Data Technology
  • Industrial Automation
  • Datacom
  • Medical technology
  • Transportation
