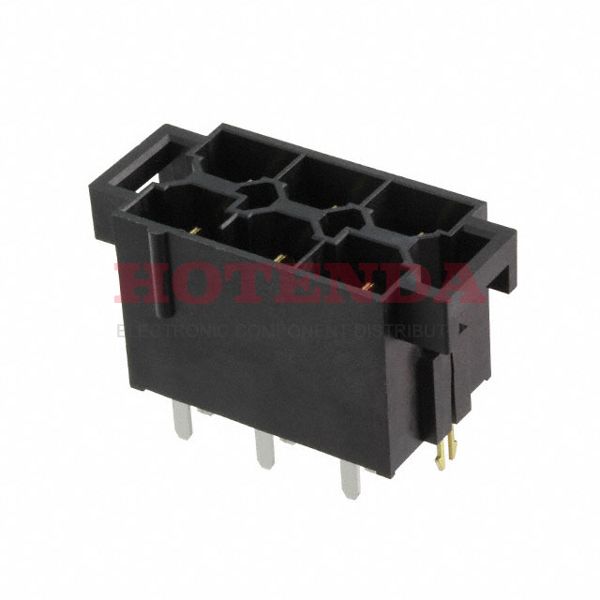

Name: 0439151206
Brand: Molex
SKU: 0439151206
Price: 21.29000 USD
Availability: InStock

new

0439151206

Manufacturer part number:0439151206

Manufacturer:Molex

Description:0439151206 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0439151206 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	5 Weeks
Contact Material	Copper Zirconium Alloy
Contact Plating	Gold
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Rectangular
Insulation Material	Polyamide (PA46), Nylon 4/6, Glass Filled
Housing Material	Nylon
Packaging	Tray
Series	Mini-Fit Sr 43915
Feature	Board Guide
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	6
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Color	Black
Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
Number of Rows	2
Fastening Type	Latch Holder
Contact Finish - Mating	Gold
Contact Type	Male Pin
Pitch	10mm
Orientation	Vertical
Depth	19.16mm
Insulation Height	0.827 21.00mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Pitch - Mating	0.394 10.00mm
Insulation Color	Black
Contact Length - Post	0.201 5.11mm
Shrouding	Shrouded - 4 Wall
Number of Contacts	6
Contact Finish - Post	Tin
Housing Color	Black
Contact Resistance	1.5mOhm
Number of Circuits	6
Length	31.41mm
Contact Finish Thickness - Mating	30.0μin 0.76μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0439151206 Product Details

0439151206 Overview

You'll get Header packages.Mounting type Through Hole is assigned to the device.This product is packaged in a case marked Tray.It belongs to the Mini-Fit Sr 43915 Series of products.Ideally, it should be used at temperatures below 105°C.The device must run at -40°C degrees.Here's a possible application for the device: Automotive, General Purpose, Industrial, Medical, Telecommunications.This feature renders it more powerful in a number of ways because of its Board Guide feature.The part is mounted by Through Hole.6 circuits make up the part.
