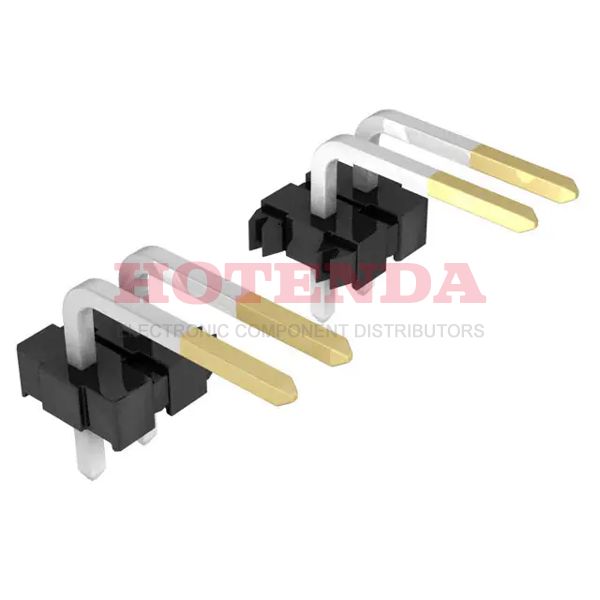

Name: 0416620036
Brand: Molex
SKU: 0416620036
Price: 2.70000 USD
Availability: InStock

new-10%

0416620036

Manufacturer part number:0416620036

Manufacturer:Molex

Description:0416620036 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0416620036 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Contact Material	Brass
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Polyester, Glass Filled
Packaging	Bulk
Series	KK 41662
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header, Breakaway
Number of Positions	14
Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
Number of Rows	1
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Type	Male Pin
Insulation Height	0.128 3.25mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.156 3.96mm
Insulation Color	Black
Contact Length - Post	0.182 4.62mm
Shrouding	Unshrouded
Contact Finish - Post	Tin
Contact Length - Mating	1.030 26.16mm
Contact Finish Thickness - Mating	30.0μin 0.76μm
Contact Finish Thickness - Post	100.0μin 2.54μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0416620036 Product Details

0416620036 Overview

The packaging is Header, Breakaway.Through Hole, Right Angle indicates that the device is mounted.Packaging the product involves using a Bulk case.The product is a part of the KK 41662 Series.Automotive, General Purpose, Industrial, Medical, Telecommunications is one possible application.
