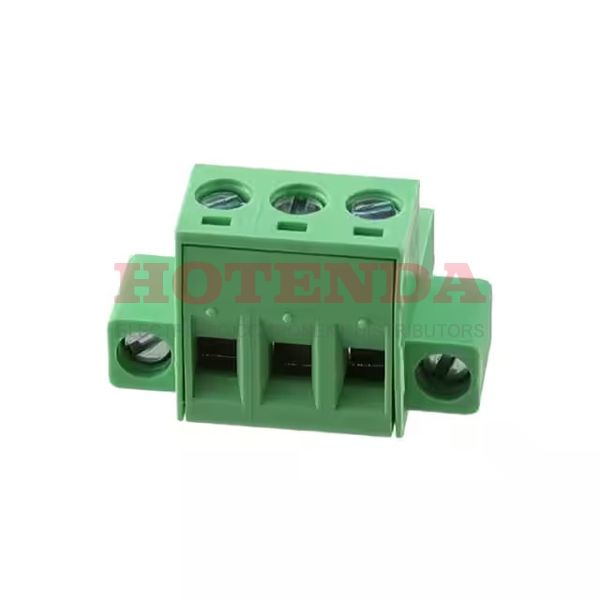

Name: 0395345003
Brand: Molex
SKU: 0395345003
Price: 2.65000 USD
Availability: InStock

new-10%

0395345003

Manufacturer part number:0395345003

Manufacturer:Molex

Description:0395345003 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0395345003 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Phosphor Bronze
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~115°C
Packaging	Bulk
Series	Eurostyle ESE 39534
Feature	Mating Flange
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Type	Plug, Female Sockets
Number of Positions	3
Max Operating Temperature	115°C
Min Operating Temperature	-40°C
Color	Green
Number of Rows	1
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	18.2mm
Insulation Height	0.591 15.00mm
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	3
Housing Color	Green
Voltage	300V
Max Supply Voltage	300V
Number of Levels	1
Current	18A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Voltage - UL	300V
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	18A
Torque - Screw	0.56 Nm (5.0 Lb-In)
Positions Per Level	3
Plug Wire Entry	180°
Wire Strip Length	6.5mm
Number of Positions Per Level	3
Length	25.04mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0395345003 Product Details

0395345003 Overview

This device's mounting type is Free Hanging (In-Line).Packaging the product involves using a Bulk case.Eurostyle ESE 39534 Series product.Use it below 115°C.A minimum temperature of -40°C must be maintained for the operation of this device.Several benefits come from the Mating Flange feature.By Cable, Free Hanging it's mounted.It runs at -40°C~115°C Operating Temperature.It is recommended that the supply voltage of this chip not exceed 300V.Compared to other Plug, Female Sockets products, this part has a lot of benefits to offer.
