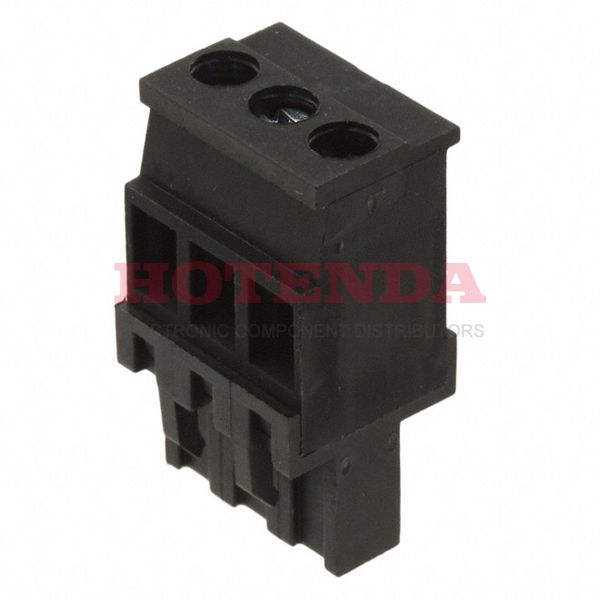

0395333003

0395333003

0395333003

Molex

0395333003 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Molex stock available on our website

SOT-23

0395333003 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 17 Weeks
Contact MaterialPhosphor Bronze
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA66), Nylon 6/6
Operating Temperature-40°C~105°C
PackagingBulk
Series Eurostyle ESE 39533
Feature Retention Latches (Wire Side)
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Plug, Female Sockets
Number of Positions 3
Color Black
Pitch 0.200 5.08mm
Insulation Height 1.020 25.91mm
Termination Style Screw - Rising Cage Clamp
Number of Levels 1
Contact Mating Finish Tin
Voltage - UL 300V
Wire Gauge or Range - AWG 12-26 AWG
Current - UL 15A
Torque - Screw 0.56 Nm (5.0 Lb-In)
Plug Wire Entry 90°
Wire Strip Length 5mm
Material Flammability Rating UL94 V-0
RoHS StatusROHS3 Compliant
In-Stock:2641 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$2.76000$2.76
500$2.7324$1366.2
1000$2.7048$2704.8
1500$2.6772$4015.8
2000$2.6496$5299.2
2500$2.622$6555

0395333003 Product Details

0395333003 Overview


Free Hanging (In-Line) is the type of mounting for the device.This product is packaged in a case marked Bulk.This is from the Eurostyle ESE 39533 Series.A number of aspects of its Retention Latches (Wire Side) feature make it more powerful.Device runs in -40°C~105°C operating temperature.With this part, you get a lot of benefits that you won't find in other Plug, Female Sockets products.

0395333003 Features


Eurostyle ESE 39533 series

0395333003 Applications


There are a lot of Molex 0395333003 Terminal Blocks applications.

  • Embedded systems
  • Measuring & Control Technology
  • LED municipal outdoor and street lighting
  • Military Technology
  • Control panels
  • Variable speed/frequency drivers
  • Transportation
  • Blowers
  • Electrical substations
  • All Electrical Machinery
