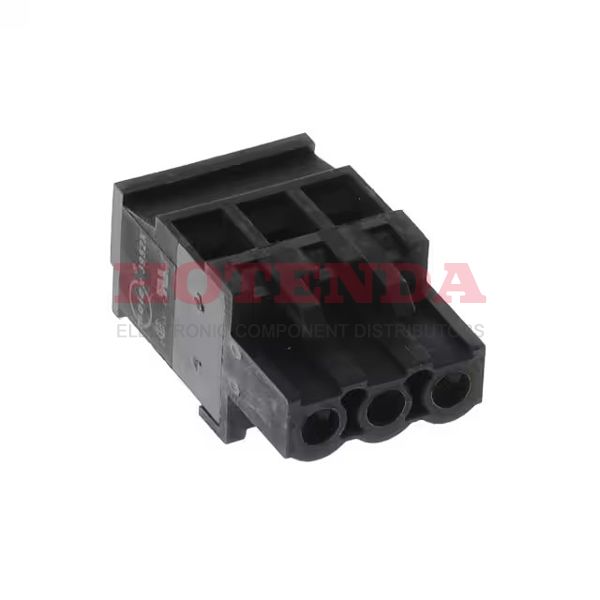

0395233003

0395233003

0395233003

Molex

0395233003 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Molex stock available on our website

SOT-23

0395233003 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 12 Weeks
Contact MaterialPhosphor Bronze
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA66), Nylon 6/6
Operating Temperature-40°C~105°C
PackagingBulk
Series Eurostyle ESE 39523
Feature Retention Latches (Wire Side)
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Plug, Female Sockets
Number of Positions 3
Color Black
Pitch 0.197 5.00mm
Insulation Height 1.020 25.91mm
Termination Style Screw - Rising Cage Clamp
Number of Levels 1
Contact Mating Finish Tin
Voltage - UL 300V
Wire Gauge or Range - AWG 12-26 AWG
Current - UL 15A
Torque - Screw 0.56 Nm (5.0 Lb-In)
Plug Wire Entry 90°
Wire Strip Length 5mm
Material Flammability Rating UL94 V-0
RoHS StatusROHS3 Compliant
In-Stock:2884 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$2.330000$2.33
10$2.198113$21.98113
100$2.073692$207.3692
500$1.956313$978.1565
1000$1.845578$1845.578

0395233003 Product Details

0395233003 Overview


Free Hanging (In-Line) is the mounting type for the device.A Bulk case is used for packaging.It's from the Eurostyle ESE 39523 Series.A number of advantages can be derived from its Retention Latches (Wire Side) feature.There is no operating temperature for the device.The benefts of this part are similar to those of other Plug, Female Sockets products.

0395233003 Features


Eurostyle ESE 39523 series

0395233003 Applications


There are a lot of Molex 0395233003 Terminal Blocks applications.

  • Datacom
  • Instrumentation
  • Refrigeration control
  • Transportation
  • All Electrical Machinery
  • Embedded systems
  • Variable speed/frequency drivers
  • Electrical substations
  • Automotive Electronics
  • Energy efficient lighting (LED)
