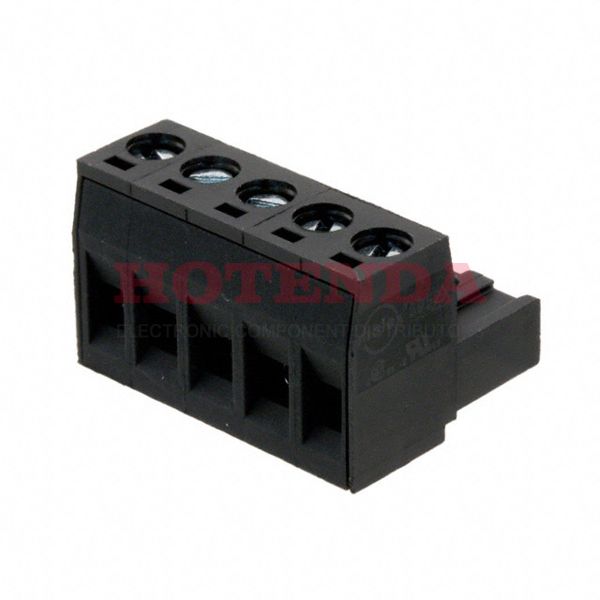

Name: 0395200005
Brand: Molex
SKU: 0395200005
Price: 3.14000 USD
Availability: InStock

new-10%

0395200005

Manufacturer part number:0395200005

Manufacturer:Molex

Description:0395200005 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0395200005 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	17 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~115°C
Packaging	Bulk
Series	Eurostyle ESE 39520
Feature	Retention Latches (Non-Wire Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Type	Plug, Female Sockets
Number of Positions	5
Color	Black
Pitch	0.197 5.00mm
Insulation Height	0.591 15.00mm
Termination Style	Screw - Rising Cage Clamp
Number of Levels	1
Contact Mating Finish	Tin
Voltage - UL	300V
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	18A
Torque - Screw	0.56 Nm (5.0 Lb-In)
Plug Wire Entry	180°
Wire Strip Length	6.5mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0395200005 Product Details

0395200005 Overview

There is a mounting type of Free Hanging (In-Line) for this device.It's packaged in a Bulk case.This product is from the Eurostyle ESE 39520 Series.A number of advantages are provided by its Retention Latches (Non-Wire Side) feature.As a result, the device runs at -40°C~115°C Operating Temperature.
