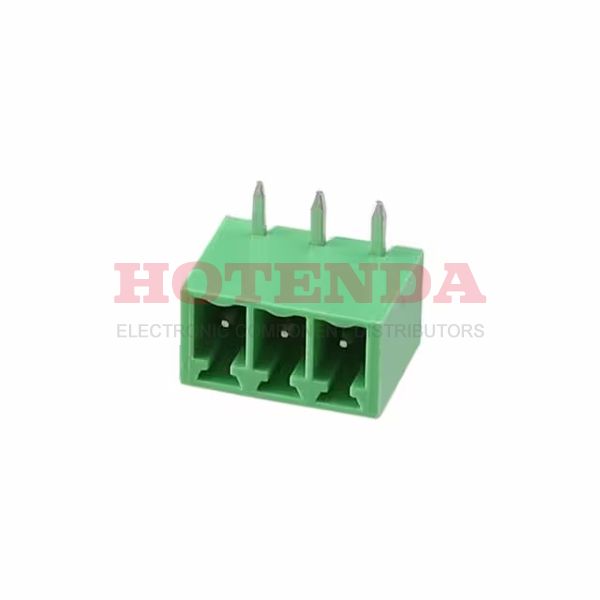

Name: 0395126003
Brand: Molex
SKU: 0395126003
Price: 1.27000 USD
Availability: InStock

new-10%

0395126003

Manufacturer part number:0395126003

Manufacturer:Molex

Description:0395126003 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0395126003 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~105°C
Packaging	Bulk
Series	Eurostyle ESE 39512
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	3
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Color	Green
Number of Rows	1
Pitch	0.150 3.81mm
Orientation	Right Angle
Depth	9.2mm
Insulation Height	0.270 6.86mm
Termination Style	Solder
Number of Contacts	3
Housing Color	Green
Contact Resistance	8mOhm
Voltage	300V
Contact Tail Length	0.138 3.50mm
Number of Levels	1
Current	8A
Contact Mating Finish	Tin
Voltage - UL	300V
Current - UL	8A
Positions Per Level	3
Header Orientation	90°, Right Angle
Number of Positions Per Level	3
Length	12.82mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0395126003 Product Details

0395126003 Overview

Mounting type is Through Hole.The product is packaged in a Bulk case.A member of the Eurostyle ESE 39512 Series.Using it at a temperature below 105°C is ideal.Temperatures below -40°C are required for this device to operate.Mounted by Through Hole.Running in -40°C~105°C Operating Temperature.Many Header, Male Pins, Shrouded (4 Side) products share the same benefits as this part.
