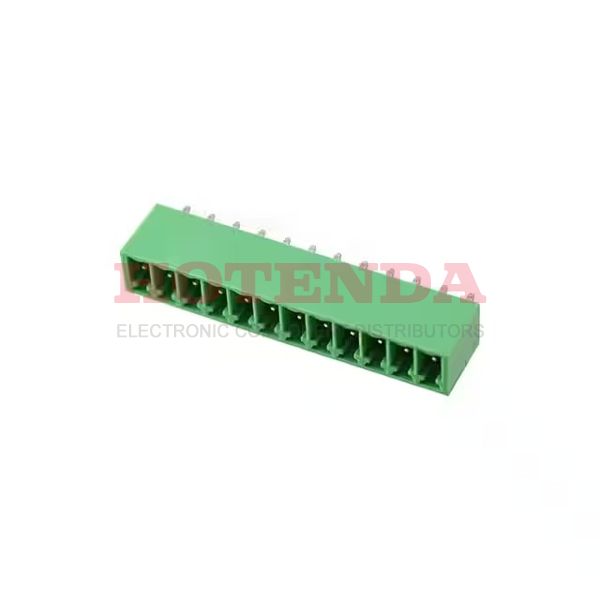

Name: 0395016012
Brand: Molex
SKU: 0395016012
Price: 3.94000 USD
Availability: InStock

new-10%

0395016012

Manufacturer part number:0395016012

Manufacturer:Molex

Description:0395016012 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0395016012 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~105°C
Packaging	Bulk
Series	Eurostyle ESE 39501
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	12
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Color	Green
Number of Rows	1
Pitch	0.138 3.50mm
Orientation	Vertical
Depth	6.9mm
Insulation Height	0.360 9.14mm
Termination Style	Solder
Number of Contacts	12
Housing Color	Green
Voltage	300V
Contact Tail Length	0.140 3.56mm
Number of Levels	1
Current	8A
Contact Mating Finish	Tin
Voltage - UL	300V
Current - UL	8A
Positions Per Level	12
Header Orientation	Vertical
Number of Positions Per Level	12
Length	43.4mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0395016012 Product Details

0395016012 Overview

A Through Hole mounting type is specified for the device.An Bulk case is utilized for packaging the product.Eurostyle ESE 39501 Series product.If the temperature is below 105°C, it's best to use it.-40°C is the minimum temperature this device can operate at.Through Hole mounts the part.-40°C~105°C Operating Temperature is used by the device.There are a lot of similarities between this part and other Header, Male Pins, Shrouded (4 Side) products.
