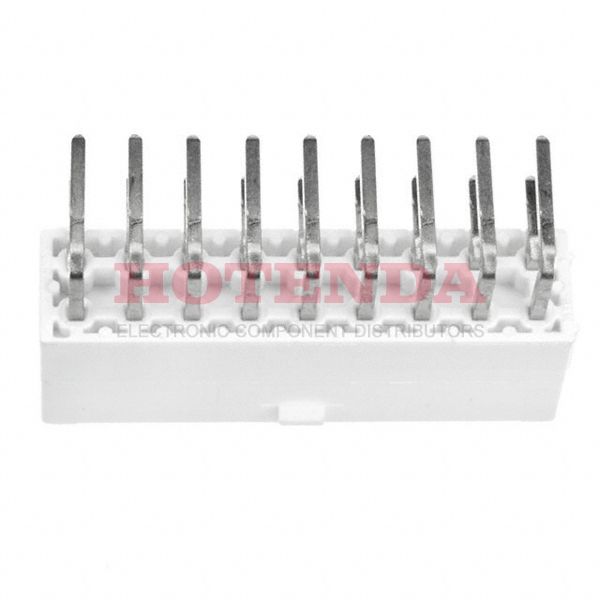

Name: 0039301182
Brand: Molex
SKU: 0039301182
Price: 10.77000 USD
Availability: InStock

new

0039301182

Manufacturer part number:0039301182

Manufacturer:Molex

Description:0039301182 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0039301182 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Brass
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Polyamide (PA66), Nylon 6/6
Packaging	Bulk
Series	Mini-Fit Jr 5569
Feature	Board Lock
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	18
Applications	General Purpose, Industrial, Telecommunications
Number of Rows	2
Fastening Type	Locking Ramp
Contact Finish - Mating	Gold
Contact Type	Male Pin
Insulation Height	0.378 9.60mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Pitch - Mating	0.165 4.20mm
Insulation Color	Natural
Row Spacing - Mating	0.165 (4.20mm)
Contact Length - Post	0.142 3.60mm
Shrouding	Shrouded - 4 Wall
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30.0μin 0.76μm
Contact Finish Thickness - Post	100.0μin 2.54μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0039301182 Product Details

0039301182 Overview

Currently, it is packaged in Header.Through Hole, Right Angle is the mounting type.Bulk cases are used to package the product.Mini-Fit Jr 5569 Series product.There's an application for it called General Purpose, Industrial, Telecommunications.A number of advantages can be derived from its Board Lock feature.
