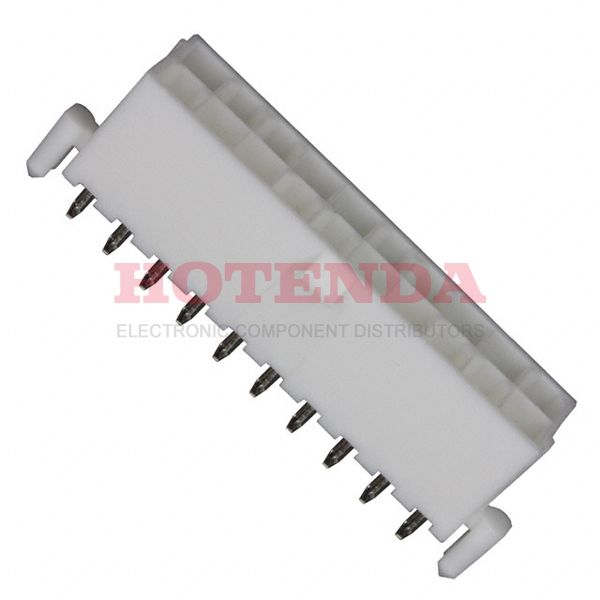

Name: 0039299207
Brand: Molex
SKU: 0039299207
Price: 4.46000 USD
Availability: InStock

new-10%

0039299207

Manufacturer part number:0039299207

Manufacturer:Molex

Description:0039299207 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0039299207 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Material	Brass
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polyamide (PA66), Nylon 6/6
Packaging	Tray
Series	Mini-Fit Jr 5566
Feature	Board Lock
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	20
Applications	General Purpose, Industrial, Telecommunications
Number of Rows	2
Fastening Type	Locking Ramp
Contact Finish - Mating	Tin
Contact Type	Male Pin
Insulation Height	0.504 12.80mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Pitch - Mating	0.165 4.20mm
Insulation Color	Natural
Row Spacing - Mating	0.165 (4.20mm)
Contact Length - Post	0.138 3.50mm
Shrouding	Shrouded - 4 Wall
Contact Finish Thickness - Mating	35.4μin 0.90μm
Contact Finish Thickness - Post	35.0μin 0.90μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0039299207 Product Details

0039299207 Overview

It comes in a Header package.Through Hole is the mounting type.The product is packaged in a Tray case.Mini-Fit Jr 5566 Series product.There's an application for it called General Purpose, Industrial, Telecommunications.A number of features make the Board Lock feature more powerful.
